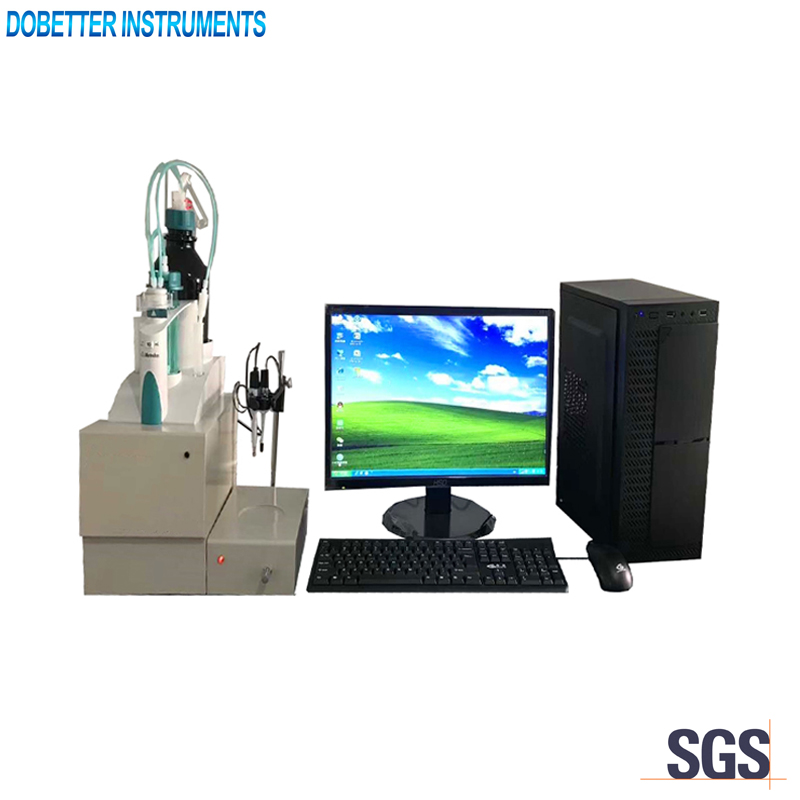

SDB-264B Automatic Total Acid and Base Number Analyzer

Main technical specifications

1. Power supply：AC 220V±10%, 50 HZ
2. Potentiometric measurement：(0～±1999.5)mV
3. Basic error of electronic unit：0.1%±0.5mV(F·S)
4. Impedance：Ri≥1×1012Ω
5. Capacity of burette：10ml
6. Precision of burette：±0.1%(F·S)
7. Titrating time：(60±20)s(F·S)
8. Measurement range：3～100μg/g(ppm)
9. Measurement precision：Can meet requirements of GB 7304, GB/T 18609, NB/SH/T 0836, ASTM D2896 and ASTM D664.
10. Overall dimension：350mm×280mm×178mm(PC is not included)
11. Net weight：14Kg(PC is not included)
12. Ambient temperature：  5℃~35℃
13. Relative humidity： ≤80%

Main technical features

1. Windows operation system is provided on PC.
2. Metrohm brand titration unit is equipped.
3. Little sample needed for each test(≤5g) and rapid test speed(about 5 min)
4. Automatic end point detection. Automatic false end point filtering.
5. Data saving and printing.
6. Multi-parameter setting and revising.
7. Liquid feeding at set value.
8. Automatic cleaning.
