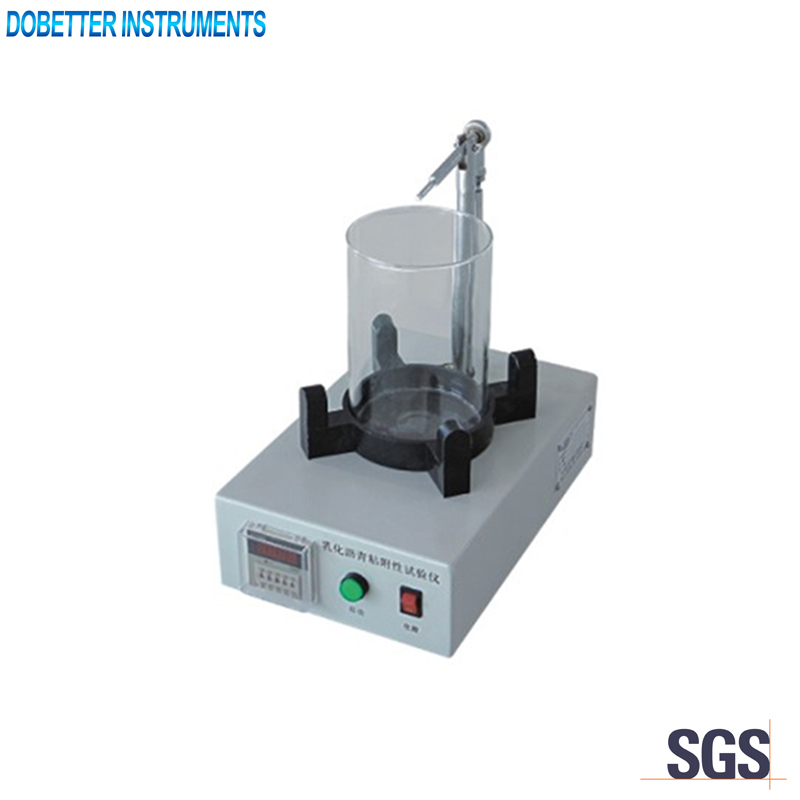

SDB-0654 Emulsified Asphalt and Coarse Aggregate Adhesion Tester

SDB-0654 Emulsified Asphalt and Coarse Aggregate Adhesion Tester

  • Description
  • Specifications&Features
  • Inquiry

Standards

JTG E20-2011 / T0654, ASTM D244

Application

This instrument is used to test the adhesion of emulsified asphalt and coarse aggregate surface to evaluate the water stripping ability of coarse aggregate.

Main technical specifications

1. Power supply:   AC220V, 50Hz.  Power consumption:  30W
2. Work environment:   Ambient temperature:  5~40 ℃, RH≤85%
3. Timing range:   up tp 3min
4. Beaker volume:   1000ml
5. Distance of rising up and lowering down:   50 ± 3mm
6. Speed of displacement:    30 ± 1 times / min
7. Size & Weight:    340 * 230 * 350 (mm) 4Kg

Main technical features

1. Simple shape, compact structure, convenient operation and good stability.
2. Automatically controls the time.Automatically stop at the end of the test.
