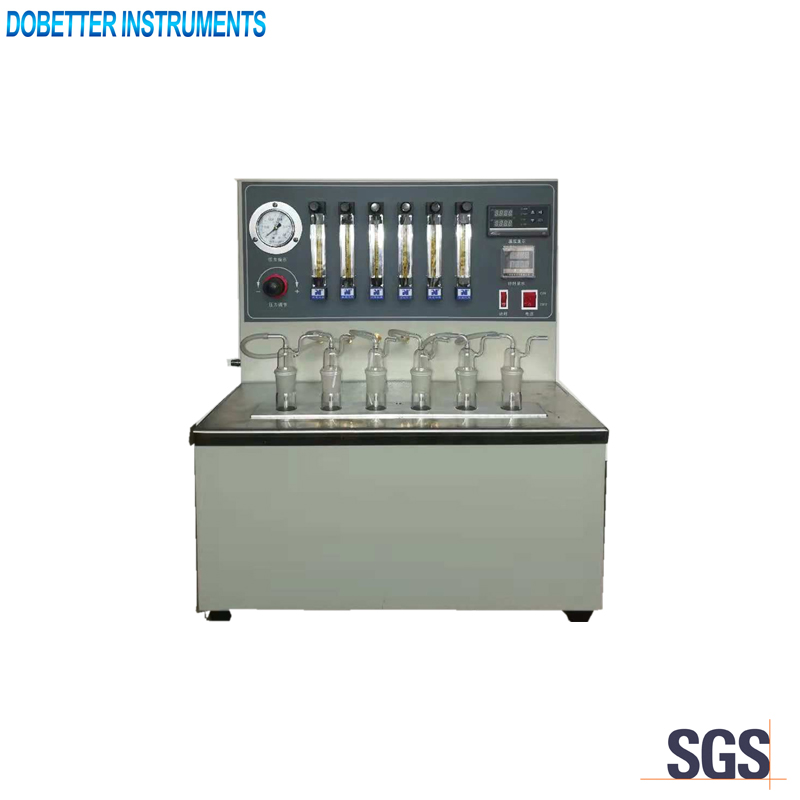

SDB-0206 Transformer Oil Oxidation Stability Tester

Main technical specifications

1. Power supply:  AC220V, 50Hz.
2. Test units:  6 samples
3. Temperature control range:  Rt. - 160℃
4. Temperature control precision:  ±0.2℃
5. Temperature control mode:  Digital temperature controller,automatic
6. Timing range:  0 - 999.9h, adjustable.
7. Flow rate:  Controlled at 17mL/min±0.1 mL/min, adjustable
8. Ambient temperature:  ≤35℃
9. Relative humidity:  ≤85％
10.Power consumption:  ≤1100W

Main technical features

1. Six test units are equipped. Up to six samples can be tested at a time. The working efficiency is high.
2. Six separated flow meters are equipped to indicate the oxygen low rate of each test oxygen tube. The flow rates are controllable.
3. A timer is equipped for timing of the tests.
