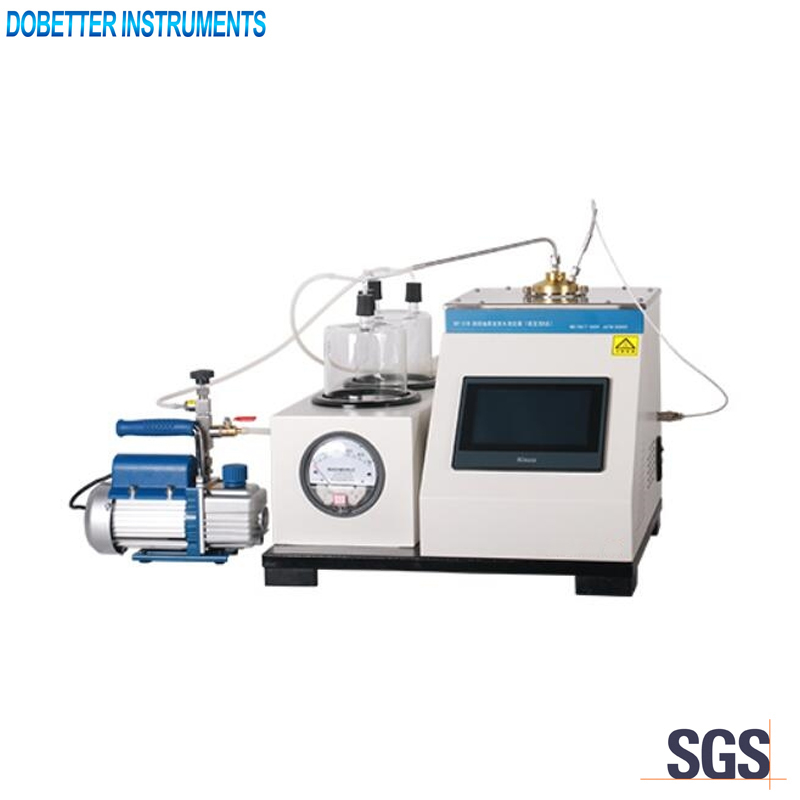

SDB-0059B Noack Evaporation Loss Tester

  • Description
  • Specifications&Features
  • Inquiry


SH/T 0059, ASTM D5800 procedure B


The instrument is used to determine the evaporation loss of lubricating oils(particularly engine oils).

Main technical specifications

1. Power supply: AC220V±10%,50Hz
2. Temperature control range: Ambient~500℃
3. Temperature control precision: ±0.5℃
4. Heating unit: Non-Woods metal.Environment friendly.
5. Vacuum system: Vacuum pump and manometer
6. Pressure range: 0~25mmH20
7. Pressure precision: ±0.2mmH20
8. Maximum power consumption: 2.0KW
9. Overall dimension: 400mm×300mm×450mm(main unit)

Main technical features

1. No need of Wood metal during the test. It avoids the environment pollution and human damage.
2. Built-in system with high-speed microprocessor. Colored touch LCD operation. Easy to use.
3. A large amount of EPROM is built in the instrument. They record the temperature, pressure in a real time. The instrument has self diagnosis procedure and kinds of alert systems.
