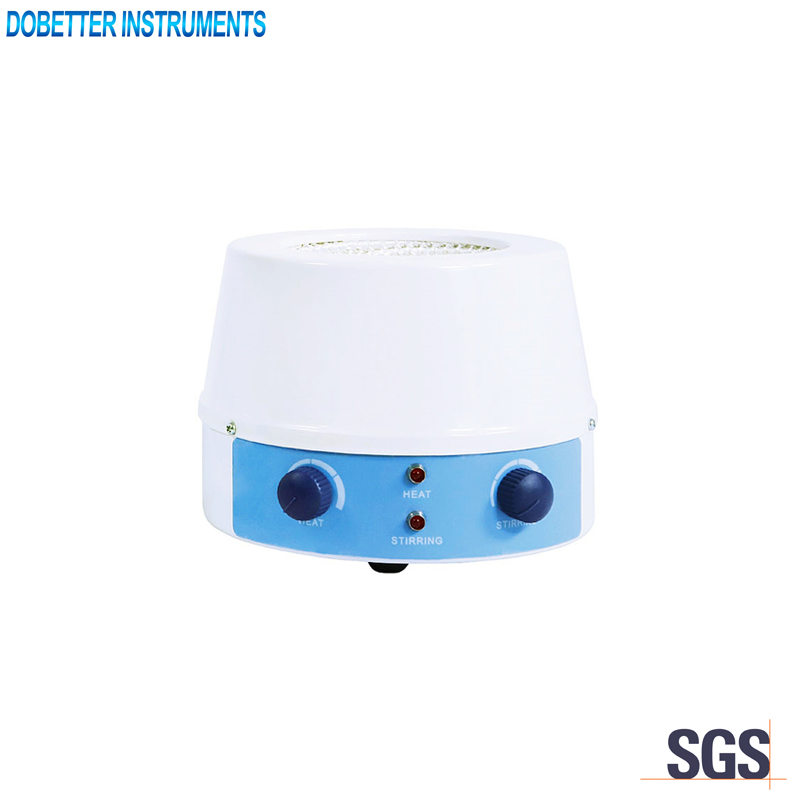

SHM-1000 Stirring Heating Mantle

Description

Application
SHM series of stirring heating mantles are suitable for petroleum, chemical industry, medicine and health, environmental protection, biochemistry, experimental analysis, education and scientific research units. They are the ideal equipment for liquid heating and stirring.

Main technical specifications
1. Power supply：AC220V, 50Hz/AC110 -120V, 60Hz
2. Heating power consumption：300W
3. Max. Working temperature：380℃
4. Speed range：0 – 1200 rpm
5. Temperature Controller：Electronic thermostat regulation
6. Dimension of the heating element：φ150mm×70mm
7. Over dimension：280mm×260mm×205mm
8. Net weight：3.9Kg

Main technical features
1.The product uses high temperature alkali free glass fiber as the insulation material, the resistance wire of nickel chromium material is sealed in the insulation layer, textile into a hemispherical internal heat heater.
2.Reasonable shape, indicators light on during working. Stepless regulation for easy operation. Good experimental effect.
