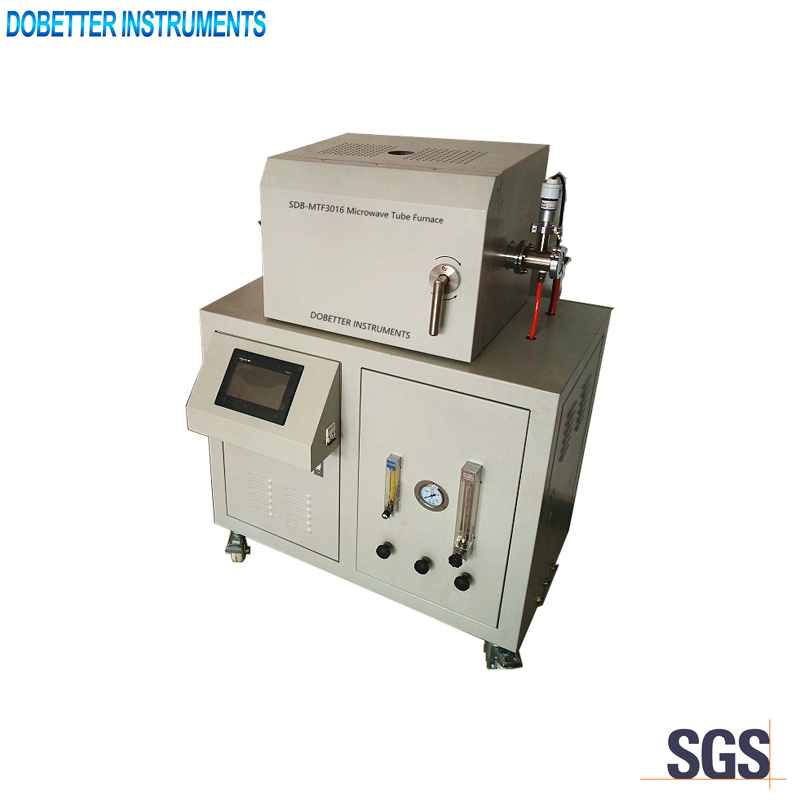

SDB-MTF3016 Microwave Tube Furnace

Description

SDB-MTF3016 Microwave Tube Furnace is suitable for sintering, roasting, synthesis, cracking and other process experimental research under oxygen atmosphere, inert atmosphere and weak reduction atmosphere.

Main technical specifications
1. Power supply：AC220V±10%, 50Hz
2. Power consumption：5000W
3. Microwave power：0.2 – 2.8KW, continuous automatic adjustment
4. Microwave frequency: 2.45GHz
5. Common temperature: ≤1600℃
6. Temperature control accuracy: ±1℃
7. Temperature detector: Thermocouple
8. Heating space: Ø50mm×250mm (inner diameter×length)
9. Constant temperature zone: 120mm
10. Furnace tube size: Ø60×680mm(outer diameter×length)
11. Safety alarm: Over-current alarm, door-closed alarm, over- temperature alarm

Main technical features
1. Control system: Microcomputer system with PLC control technology. Touch-screen operation. It includes three temperature control modes: manual, constant-temperature and automatic control. Other functions: 40 stages of configurable process parameters, with data storage, export of experimental data, real-time curve display.
2. Atmosphere system: Can be filled with protective gas, the flow of incoming gas is controllable (reserved vacuum interface).
3. Microwave leakage: It equips microwave shield and handheld microwave leak detector. The microwave leakage: < 1mW/cm.
4. It can process a variety of microwave characteristics of different materials. Good versatility.
5. Various specifications or models of special crucibles and thermal insulation structure for choice, no pollution to the material.
6. Kinds of safety alarm functions are set. Safer to the user.
