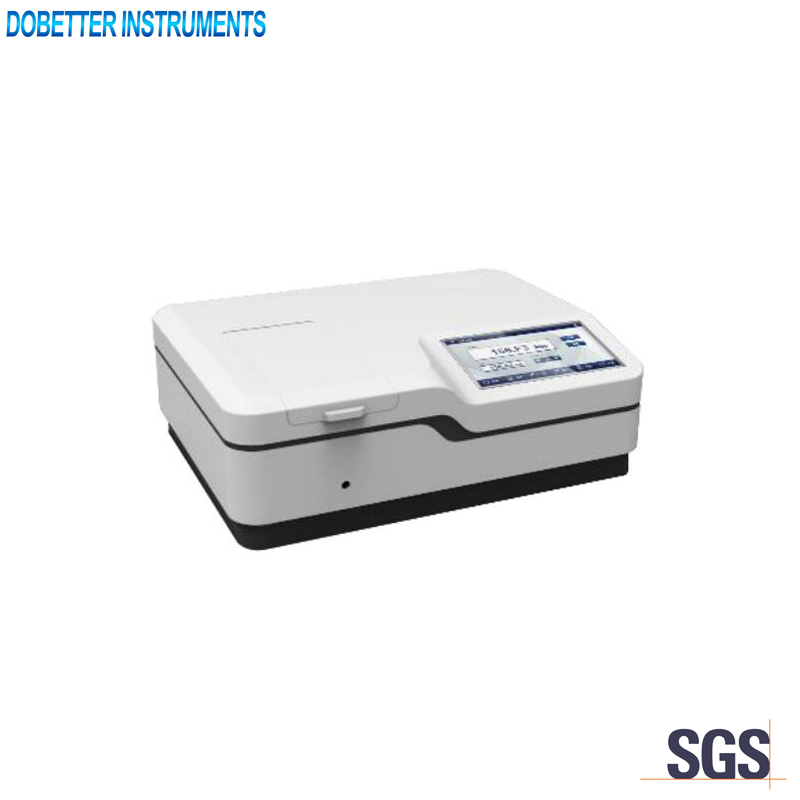

SDB-K9000X UV-Vis Spectrophotometer

Main technical specifications
1. Optical System: Double Beam, Grating 1200 lines/mm
2. Wavelength Range: 190～1100nm
3. Spectral Bandwidth: ±2.0nm,
4. Wavelength Accuracy: ±0.3nm
5. Wavelength Repeatability: 0.1nm
6. Transmittance Accuracy: ±0.2%T(0~100%T), ±0.002A(0~0.5A), ±0.004A(0.5~1A)
7. Transmittance Repeatability: ≤0.15%T(0~100%T), 0.001A(0~0.5A), 0.002A(0.5~1A)
8. Stray Light: ≤0.03%T@220nm, 360nm
9. Stability: 0.0005A/h@500nm
10. Photometric Modes: Transmittance, Absorbance, Concentration, Energy
11. Wavelength Adjustment: Automatic
12. Photometric Range: 0~200%T, -0.3～3A, 0~9999C
13. Display: 10.1-inch Touch Screen
14. Detector: Imported Silicon Photodiode
15. Light Sources: Imported Xenon Lamp
16. Power Supply: AC 220V/50Hz or AC110V/60Hz
17. Power Consumption: 150W
18. Instrument Dimensions: 810*660*390mm
19. Net Weight: 27Kg

Main technical features
1. English operating system, 10.1-inch color touch LCD.
2. High quality Hamamatsu flashing xenon lamp is equipped, which can make SDB-K9000X start to test directly without preheating. The lamp can be used at least for 3 years.
3. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA Protein test, multi-wavelength test, etc.
4. In-house massive memory is capable of saving up to 1024M for test data & working curves.
5. Supports USB storage. The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage.
6. Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
7. Extensive accessories are optional, such as auto 8-cell holder, film holder, tube rack, peltier/sipper system, integrating sphere, reflection accessory, built-in printer, 21 CFR compliant software, etc.
