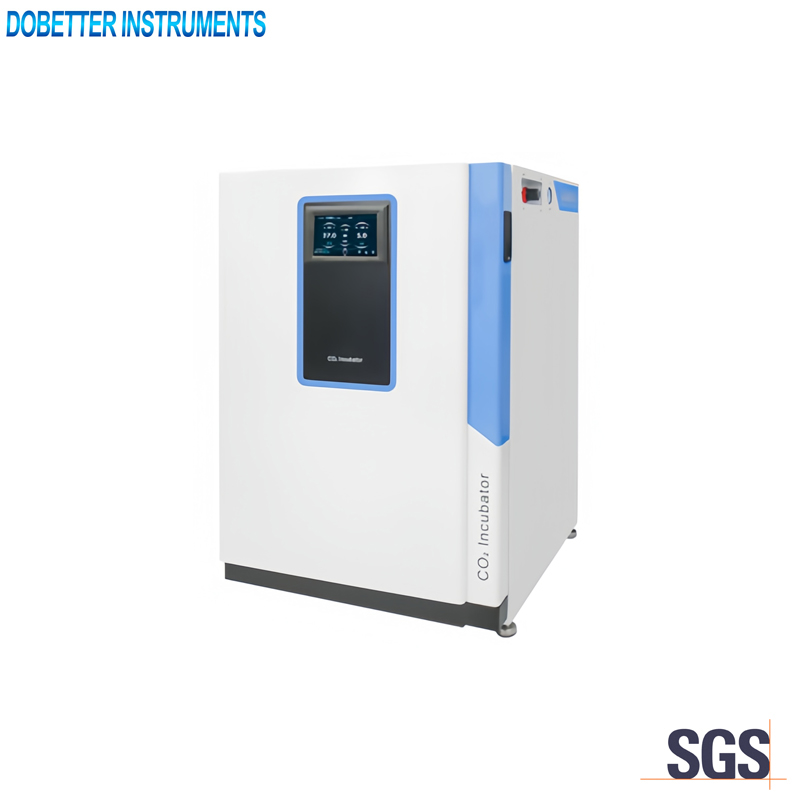

SDB-C185W CO2 Incubator

Main technical specifications
1. Power supply:  AC220V±10%, 50Hz/60Hz.
2. Maximum power consumption:  1200W.
3. Capacity:  185L
4. Inner dimension:  490 x 490 x 770(mm)
5. Inner dimension:  685 x 705 x 1030(mm)
6. Heating method:  Water jacked
7. Temperature control range:  Rt.+5 - 60°C
8. Temperature fluctuation:  ≤±0.2°C
9. Temperature uniformity:  ≤±0.4°C(@37°C)
10. CO2 control range and precision: 0 - 20%, ±0.1%
11. CO2 recovery time:  ≤ 6min(Recover to 5% within 60 seconds)
12. High-temperature moist heat sterilization@ 90°C: Yes
13. Shelves: 3pcs
14. Packaging dimension and G.W.: 880 x 860 x 1200(mm), 158Kg

Main technical features
1. High-quality Industrial Design
▸ The detachable drawer-style shelves allow flexible configuration, and the independent humidifying water tray can be inserted or removed as needed.
▸ Stainless steel shelves and brackets ensure long-term durability with tool-free disassembly.
▸The seamless interior with polished stainless steel and rounded corners facilitates effortless cleaning.
2. Infrared Sensor Designed for Precision Monitoring
▸ IR CO₂ sensor ensures stable monitoring of culture environments, effectively eliminating measurement drift caused by frequent door openings.
▸ Ideal for remote monitoring or applications requiring repeated incubator access.
3. Active Airflow Technology
▸ Fan-assisted circulation enables rapid recovery and rigorous uniformity. This airflow pattern is engineered to distribute temperature, gas concentration, and humidity homogeneously.
▸ The built-in fan guarantees consistent culture conditions for all cells regardless of placement location, while minimizing dehydration during door openings.
4. Microbial HEPA Filtration
▸ CO₂ inlet features a HEPA-grade microbial filter with 99.99% filtration efficiency for particles ≥0.3μm, effectively removing bacteria and dust contaminants from CO₂ gas.
5.90°C High-Temperature Moist Heat Sterilization System
▸ No need for individual part disassembly.
▸Effectively eliminates microbial contamination (including bacteria, fungi, mycoplasma, etc.) on inner chamber surfaces that can compromise cell culture, ensuring a safe experimental environment for users.
6. 7-inch LCD Touchscreen
▸ Intuitive controls display real-time/historical operation curves. Capacitive touch technology provides responsive operation with door-top ergonomic placement.
▸ Features audible/visual alarms, on-screen menu guidance, and accessible alarm logs.
7. Optimized Humidity Reservoir Design
▸ Large evaporation surface area accelerates humidity recovery post-door closure. Maintains high-humidity environments while inhibiting condensation formation above the chamber under normal ambient conditions.
▸ Provides maximum protection for cell/tissue cultures by preventing hazardous condensation.
8. Historical Data Management
▸ View, monitor, and export historical data via USB interface.
▸ Audit trail protection: Original data remains unalterable with full provenance tracking.
9. Modular Customization
▸ Optional: Humidity display module, printer, and monitoring software.
▸ Flexible software configuration: Sections can be added/removed on demand.
