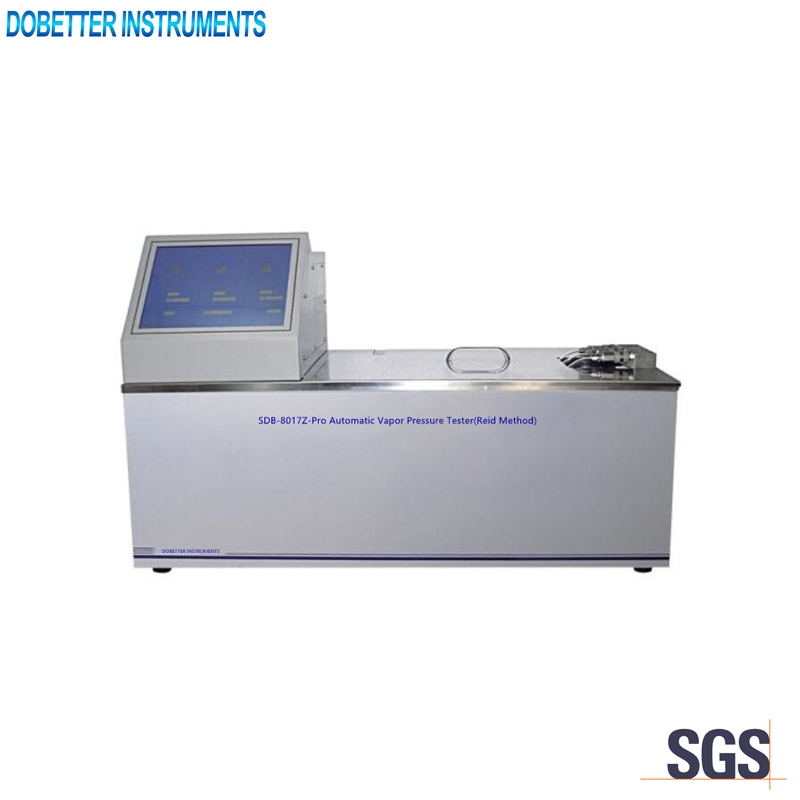

SDB-8017Z Automatic Vapor Pressure Tester(Reid Method)

Main technical specifications
1. Power supply: AC220V±10%, 50Hz
2. Maximum power consumption: 1200W
3. Temperature control of the water tank: 37.8±0.1℃
4. Heating speed(from ambient to 37.8℃): ≤40min
5. Pressure display precision: ≤0.25Kpa
6. Test vessels: 3pcs
7. Automatic rotation: 350°
8. Data storage: 10000pcs
9. Working condition: 15 to 35℃, RH≤85%

Main technical features
1. 10.4 inch colored touch-screen operation. Built-in IPC control. All English display. Easy to use.
2. It can control the test procedures, judge the test results and save the data automatically.
3. Automatic rotation by 350°. Automatic reversing.
4. When the vapor pressure in the vessel reaches saturation, there will be a buzzer prompt.
5. The quick coupling and PU pipe are both imported. It avoids gas leakage well.
6. Large database. It can save about 10000pcs of test results. The test data can be uploaded to LIMS(Model SDB-8017Z-Pro, customizable).
7. Three test vessels are equipped. It can test 3 samples at a time.
