Application

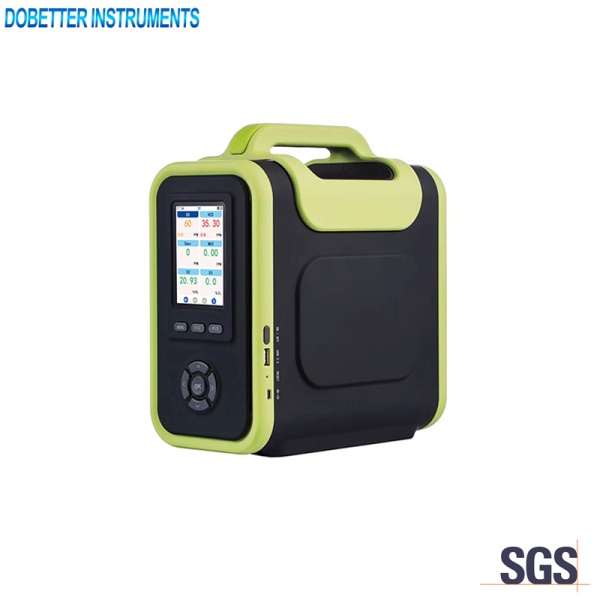

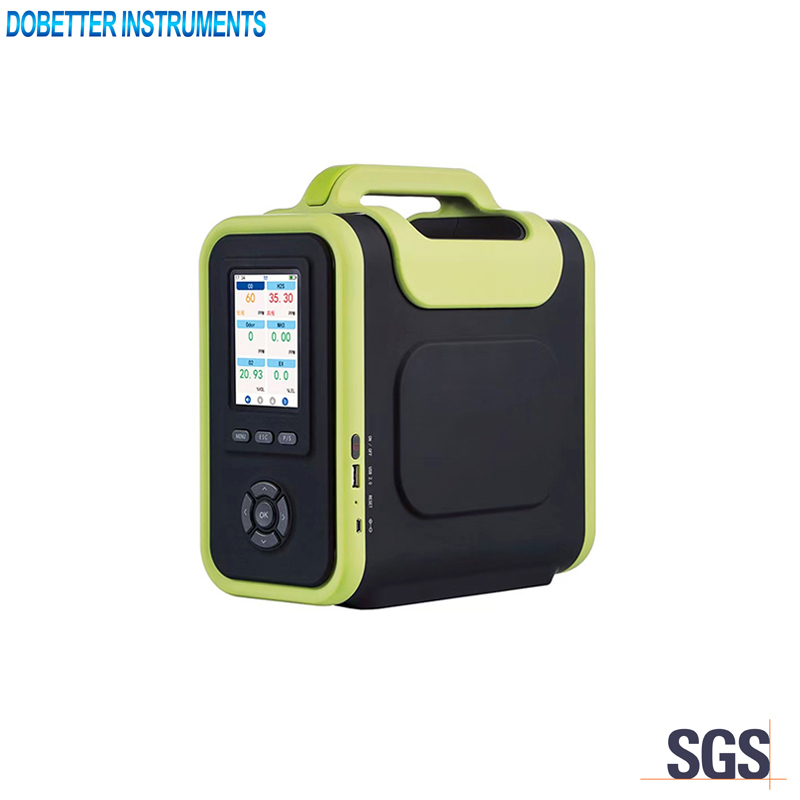

SDB 8000-X senes gas analyzer is a data collector which can quickly acquire and analyze gas concentration componentes in factory, scientific research, university and complex working enviroment. There are 4 dufferent version to support different applications including SDB 8000-M gas analyzer to monitor gases in amblient environment; SDB 8000-AQ air quality gas analyzer to monitor gases, particle counter, dew point, temperature and humidity; SDB B000-QU odor gas analyzer to monitor H2S, NH3, odor; SDB B000-EM emission gas analyzer to monitor high gas concentration gases in flue gas environment.
Specifications&Features
Main technical specifications
1. Gas Detected: O2, CO2, CO, NO, NO2, SO2, VOC, etc to be specifiec according to application
2. Detection Principle: Depend on gas type and application
3. Measure range: Specified according to application
4. Resolution: Specified according to application
5. Display: Gas formula, real-time data, real-time curve, battery, time, pump condition, wireless status, printer status
6. Alarm: Buzzer, red LED and alarm status on the display, fault alarm, low battery alarm
7. Data storage: Independent SD memory card, standard 32G, measurement data can be record automatically. customizable record time interval
8. Data transmission(Optional) : RS485 signal output, USB interface data transmission, with PC software, can downloac storage, analyze and print data
9. Print function(Optional): Optional with inteal portable printer or external bluetooth printer
10. Print content(Optional): Date, Time, Gas, Concentration, Stat, Unit
11. Charger: Standard Micro-USB charging port. With 9V/2A charger
12. Language: Chinese/English
13. Network frequency: 2.4G high frequency
14. Wireless transmission: Bluetooth is less than 10m, and WIFI outdoor single distance: point is less than 500m
15. Battery: Large capacity rechargeable lithium battery. 5200mAh working hours are more than 32h with single gas and 24h with six gases together
16. Precision: <2%F.S (Higher precision can be customized)
17. Pump flow rate: 500ML
18. Working Humidity : 0-95% RH(no condensation) (optional filter device is available if high humidity)
19. Temperature: -40℃-+70℃, Optional gas sampling gun, can detect up to 1200 degrees gas concentration
20. Screen: 3.5-inch hd LCD screen with resolution 320* 480
21. IP grade: IP66
22. Explosion-proof: Ex ic IIC T3 Gc
23. Warranty: 12 months
24. Size&Weight: 260*230*120mm(HxWxD), 3700g
Main technical features
1. Support to monitor 1-18 gas types
2. 3.5-inch color LCD display support both real tima data and chart, user friendiy.
3. Built-in pump gas sampling, faster response.
4. Equippped with multi-layer filtering. Protect sensor from oil, water vapour and dust.
5. Standard 32G SD memory card to store and export data by U-disk easily.
6. Support Lora and other wireless ool munication(Optional).
7. Support built-in printer for real time data printing(Optional).
8. High temperature, high humidity environment measurement(Optional).
