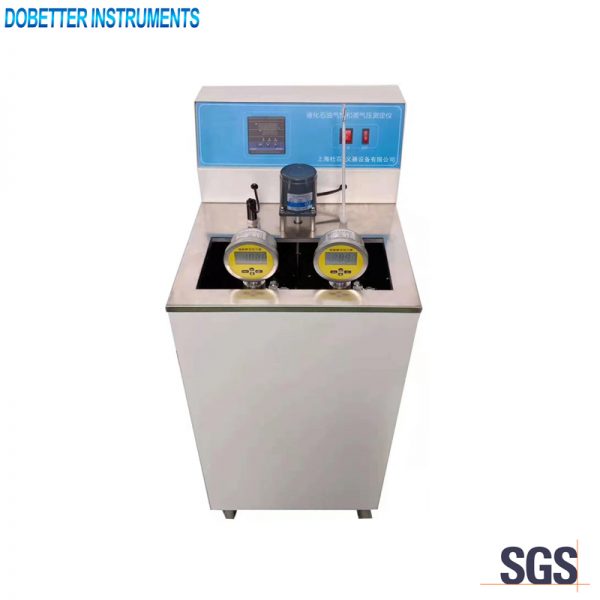

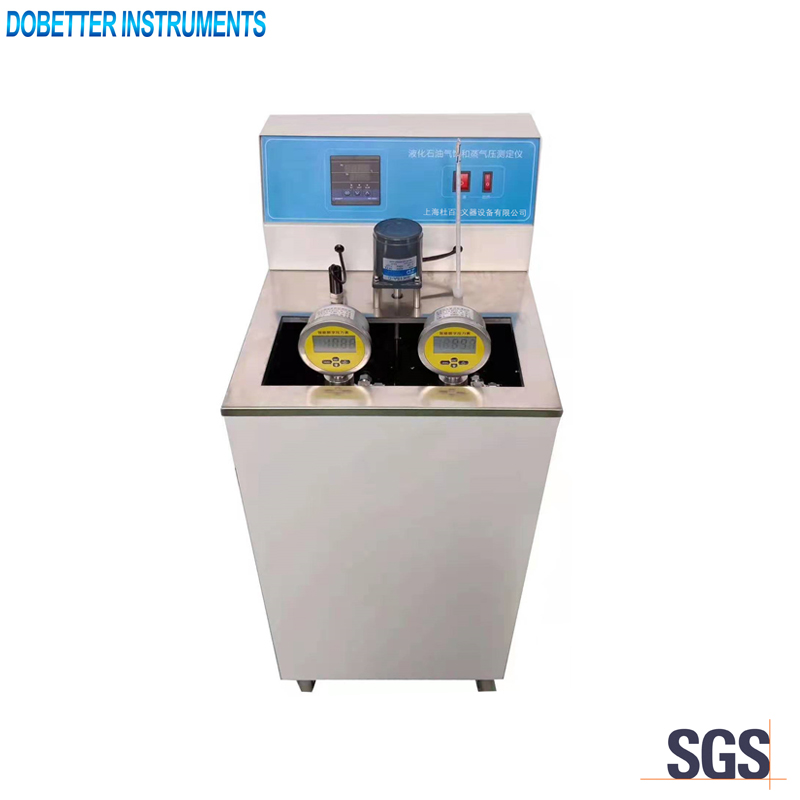

SDB-6602 LPG Vapor Pressure Tester

  • Description
  • Specifications&Features
  • Inquiry

GB/T 6602, ASTM D1267

The instrument is used to test the vapor pressure of liquefied petroleum gases in the temperature range of 37.8~70℃.

Main technical specifications

1. Power supply: AC220V±10%,50Hz
2. Heating power: 1500W
3. Temperature range: Ambient~100℃
4. Temperature precision: ±0.1℃
5. Temperature controller: Digital controller
6. Test bombs: 2
7. Stirring way: Circulatory pump
8. Pressure range: 0~1.6MPa
9. Working condition: 15~30℃, RH≤85%

Main technical features

1. Digital temperature controller provides stable temperature control.
2. The heating output adopts SSR. No touch point, no spark, no noise. Safe to use.
3. Stainless steel heater makes the heating speed fast.
4. Double-bomb design. It can test two samples at a time. The efficiency is high.
5. Circulatory pump stirring. Good uniformity. No noise.
