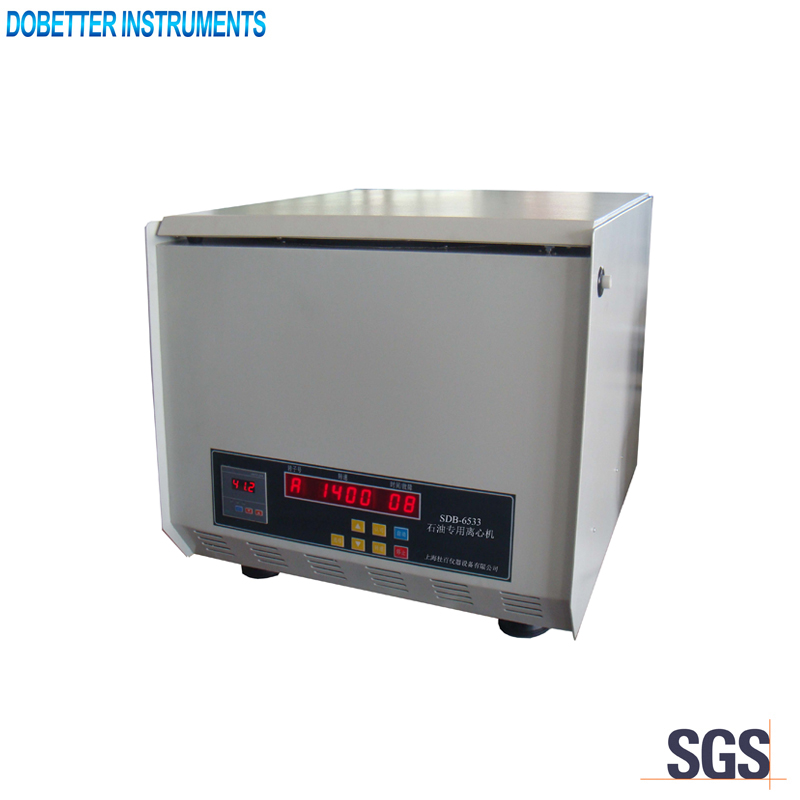

SDB-6533 Petroleum Centrifuge

Description

Standards
GB/T 6533，ASTM D1796

Application

This instrument is used to determine the water and sediment in fuel oils in the range from 0 % to 30 % volume by means of the centrifuge procedure.

Main technical specifications

1. Power supply: AC220V±10%, 50Hz
2. Maximum power consumption: 2500W
3. Disc diameter: φ500mm
4. Max. rotating speed: 4000r/min
5. Max. relative centrifugal force: 3790×g
6. Max. capacity: 4×100ml
7. Temperature range: Rt+5 to 70℃
8. Timing range: 0-60 min
9. Working condition: 15 to 35℃, RH≤85%

Main technical features

1. The parts of the instrument are made of high quality materials, advanced technology, reasonable structure.
2. The rotating parts have a large safety factor which are installed in the center of the machine, and equipped with vibration absorption system, smooth operation.
3. The organic cover is installed above the centrifuge to ensure the safety of the operator, the centrifuge metal parts are made of durable surface treatment.
4. The operation knobs are concentrated on the control panel of the instrument. Easy to use.
