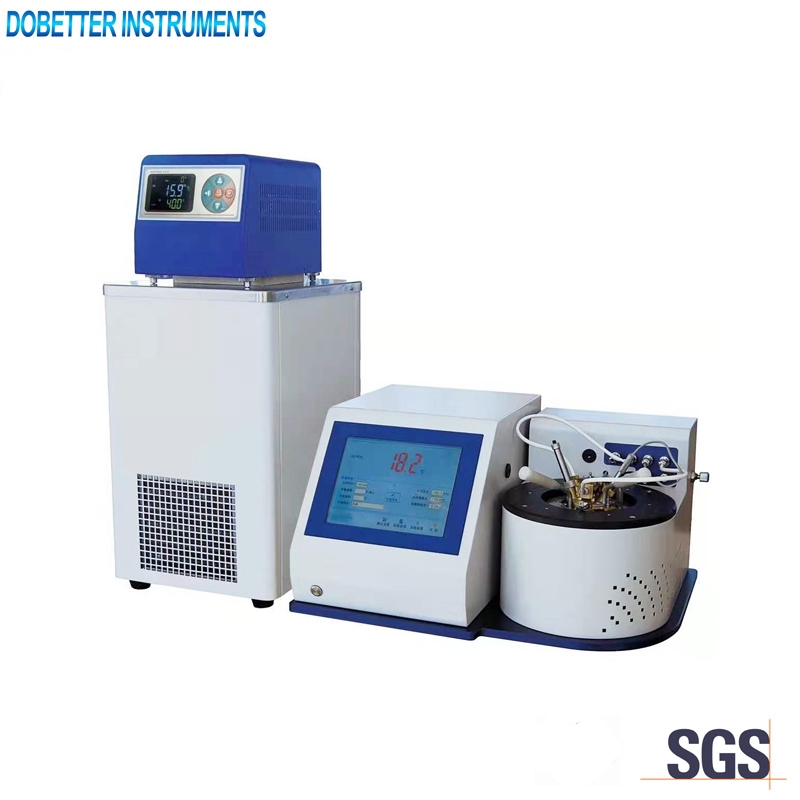

SDB-170Z Automatic Abel Closed Cup Flash Point Tester

Description

Standards

IP170, ISO13736

Application

This instrument is used to determine the closed-cup flash point of combustible liquids having flash point between -30℃ to 75℃.

Main technical specifications

1. Power supply: AC 220V±10%, 50Hz
2. Maximum power consumption: 300W
3. Measurement range: -30 to 110℃(with circulatory water bath)
4. Temperature resolution: 0.1℃
5. Temperature sensor: Pt100
6. Repeatability&reproducibility: In accordance with IP170 and ISO13736
7. Ignition: Gas or electric
8. Heating&Stirring rate: In accordance with IP170 and ISO13736(or programmable)
9. Data storage: 10000pcs
10.Safety: Automatic flame detection and extinguishment
11.Working condition: 10 to 35℃, RH≤85%

Main technical features

1. 8.4 inch colored touch-screen operation. Built-in IPC control. All English display.
2. The heating, ignitiong, flash point measuring are all automatic.
3. Built-in BARO sensor. It can correct the test result according to the detected atmospheric pressure automatically.
4. Large database. It can save about 10000pcs of test results. The test data can be uploaded to LIMS(Model SDB-170Z-Pro, customizable).
5. Gas ignition option and electric ignition option are selectable.
6. An exterior flame detector is equipped for detecting the flame.
7. An exterior circulatory water bath is equipped for cooling medium circulation.
