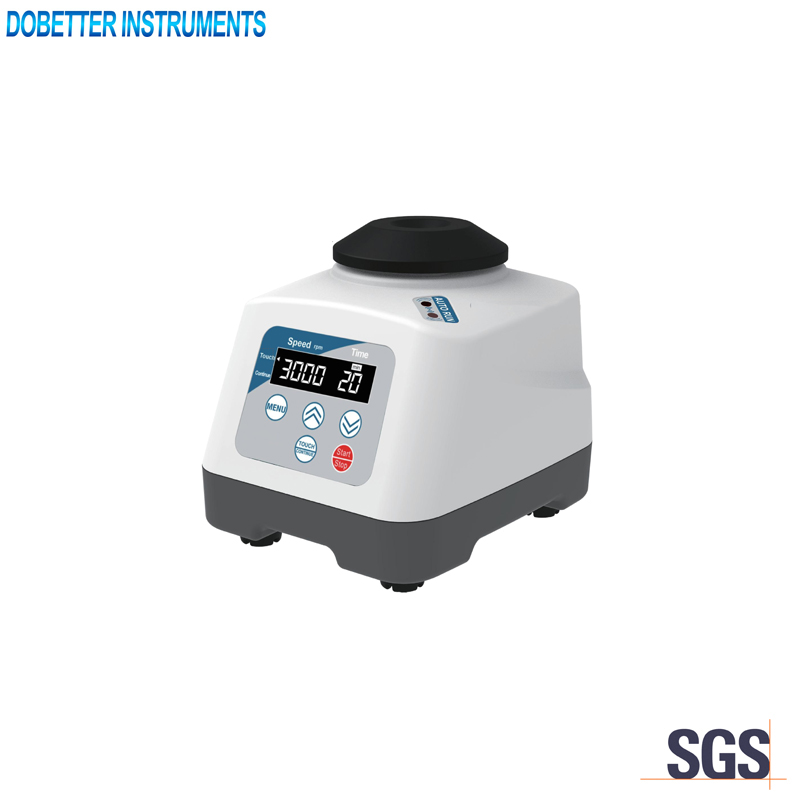

M6 Vortex Mixer

Main technical specifications
1. Input power supply: DC24V/1.5A
2. Input power: 20W
3. Motor/Drive Method: DC24V permanent magnet motor/direct drive
4. Control mode: PWM stepless speed regulation
5. Operation mode: Jog: Light sensing action/cotinuous mode
6. Power fuse: PPTC/Self recovery fuse/No need to replace
7. Maximum load: 1.0Kg
8. Speed range: 200-3.000r/min,±5%
9. Oscillation mode：Circumference
10. Circumferential diameter：4.5mm
11. Speed function/display：Full range of bright LCD
12. Time function：Digital timing 15-999min/countdown/iog timing
13. Size: 127mmx147mmx128mm
14. Weight：3.5kg
15. Noise at maximum speed：≤48dB(A)
16. Fastest acceleration time：≤3s
17. Maximum deceleration time：≤3s
18. Permissible ambient temperature/relative humidity: +5- 40℃/80%
19. Protection level: IP20
20. Interference suppression standard: EN 61010-1, EN 61010-2-020, EN 61326-1, EN 61010-3-2/A2

Main technical features
1. There are two safe operation modes, jog and continuous, which are convenient and easy to switch. The time function has a positive and countdown function, making the experiment more convenient, accurate, and accurate.
2. Complete the work at high speed, high efficiency, and high thoroughness with any liquid or powder that needs to be mixed in the shortest possible time.
3. The perfect optimization design of the body structure ensures sufficient counterweight and eccentric balance operation, providing a stable and quiet working platform for various oscillation and mixing.
4. The ST intelligent analysis and processing platform can sensitively respond to various mode work requirements, fully equipped with fast processing chipsets and electronic sensing technology, easily achieving intelligent control of speed, time. and working mode.
5. The permanent magnet DC motor is not easy to generate heat and has over temperature protection characteristics, ensuring long-term trouble-free operation under high-speed mixing. It is simple and integrated, without the need for redundant accessories, reducing running resistance, becom-ing more powerful, reducing noise, and avolding interference.
