Description
DV-1 series of digital viscometers： The most universal viscometers in the world. Beside all performance of SNB series of viscometers, DV series of viscometers have wider measuring ranges.《DV programmable loader》software is optional for downloading the customized measuring program to the viscometer to make a personalized operation.
Main technical specifications
1. LVDV-1 Digital Viscometer
(1)Measuring range(mPa·s)：12 – 6000000
(2)Rotating speed(r/min)：0.1 – 100
(3)Spindles：L1, L2, L3, L4
(4)Measuring precision(Newtonian liquid)：±1%(F·S)
(5)Repeatibility(Newtonian liquid)：±0.5%(F·S)
(6)Power supply：AC220V/50Hz or AC110V/60Hz
(7)Timing function：Up to 60min
(8)Spindle L0 is optional for low viscosity test：Minimum 0.6mPa·s

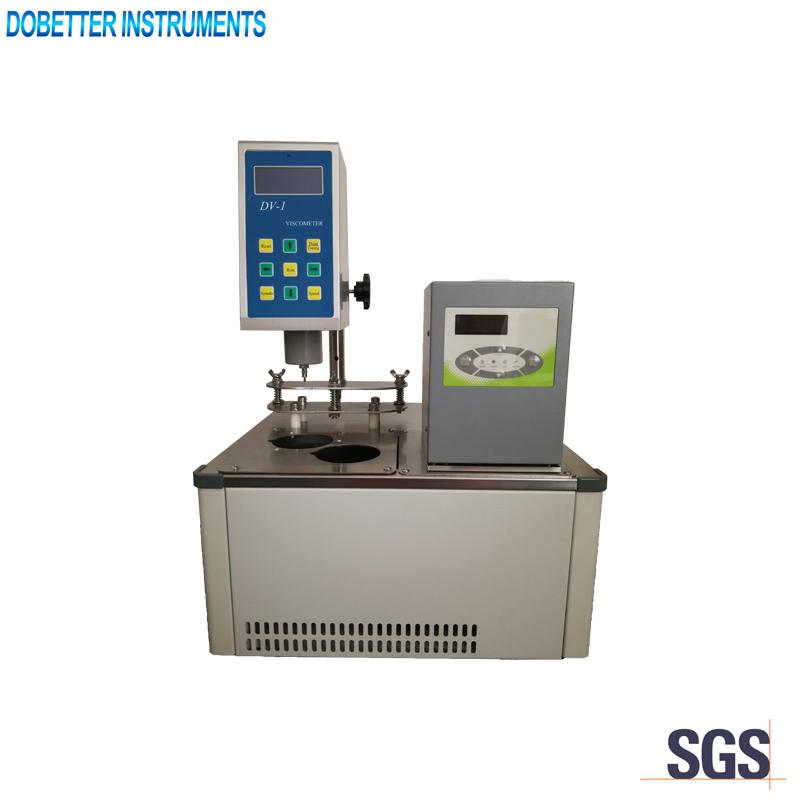

2. LC-1008 Thermostatic Bath
(1)Temperature range：-10.0℃ – 100.0℃
(2)Temperature resolution： 0.1℃
(3)Temperature stability： 0.05 – 0.1
(4)Heating power： 2000W
(5)Cooling power： 300W@10℃
(6)Maximum pumping pressure： 0.2bar
(7)Maximum suction pressure： 0.1bar
(8)Maximum flow rate： 12L/min
(9)Connection port of pump： M16×1
(10)Capacity of the water tank： 8L
(11)Opening size of the water tank： 175mm×145mm×150mm
(12)Overall size of the thermostatic bath： 415mm×410mm×426mm
(13)Viscometer fixing mode： Desktop
(14)Power supply： AC220V/50Hz
Main technical features
1. Using 16 – bit microprocessor control circuit, accurate data acquisition, high measuring accuracy.
2. High subdivision drive stepper motor, no gear drive, smooth rotation .
3. RTD temperature sensor can monitor the temperature of the test sample in real time.
4. Blue light LCD displays viscosity, speed, temperature, torque percentage, spindle number and the maximum viscosity value can be measured by the selected spindle at the current speed. The operation keys are flexible and durable.
5. Spindle L0 is optional for low viscosity test: Minimum 0.6mPa·s.
6. A Micro printer is optional for data printing.
7.《Data collecting, analyzing and drawing》software is optional for data collecting analyzing and curve drawing.
8.《DV programmable loader》software is optional for a program editing as user’s wish.
9. A model LC-1008 thermostatic bath is equipped for the tests at specific temperatures.
