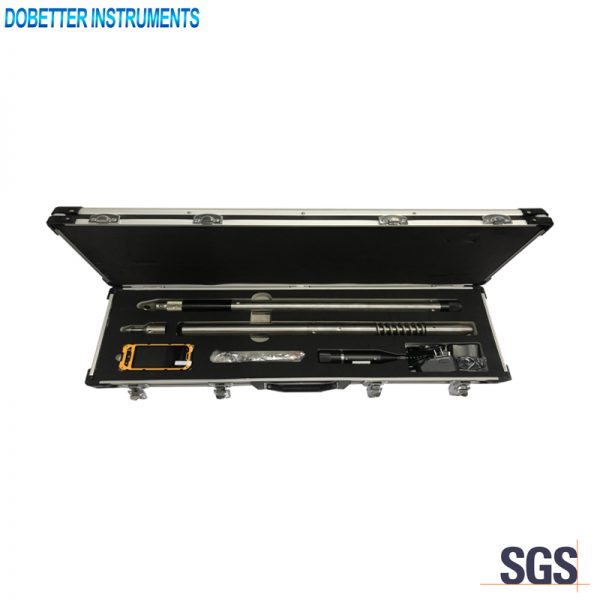

KXP-3D Wireless Digital Compass Inclinometer
- Description
- Specifications
- Inquiry
This instrument is a high accuracy wireless magnetic inclinometer. It is operated by a portable controller and can survey at any time, any depth without time interval. 99 groups of data can be saved. An USB port is set on the portable controller for easy communication with PC. The data and the drawing curve can be transfered.
| 1.Inclination Range | 0°-80°(Resolution 0.01°) | Accuracy | ±0.1° (0° - 50°) | |
| ±0.8° (50° - 80°) | ||||
| 2.Azimuth Range | 0°-360°(Resolution 0.1°) | Accuracy | ±3°(@Inclination＞4°) | |
| 3.Pressure | 20MPa | |||
| 4.Dimenisions | Ø40mm×1200mm | Net weight | about 6Kg | |
| 5.Temperature | -10°C - 70°C | |||
| 6.Power (Probe) | 7.4V Rechargeable Battery | Endurance | About 20 hours | |
| 7.Power (Controller) | 2600 mAh Polymer Battery | |||
| 8.Depth | 2000m | |||
| 9.Storage | 8GB ROM | |||
Related Products
-

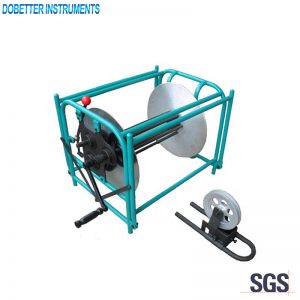

Read MoreQuick ViewJC-2 Cable Winch
-

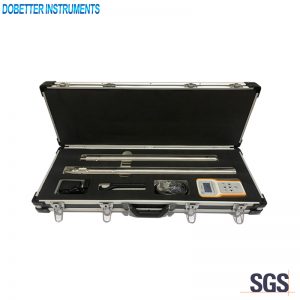

Read MoreQuick ViewKXP-2X Wireless Digital Compass Inclinometer
-

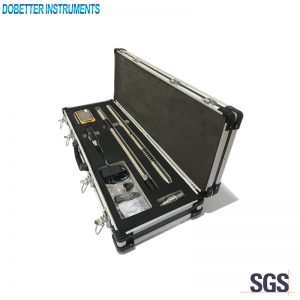

Read MoreQuick ViewKXP-4QZT Full Space Digital Compass Inclinometer
