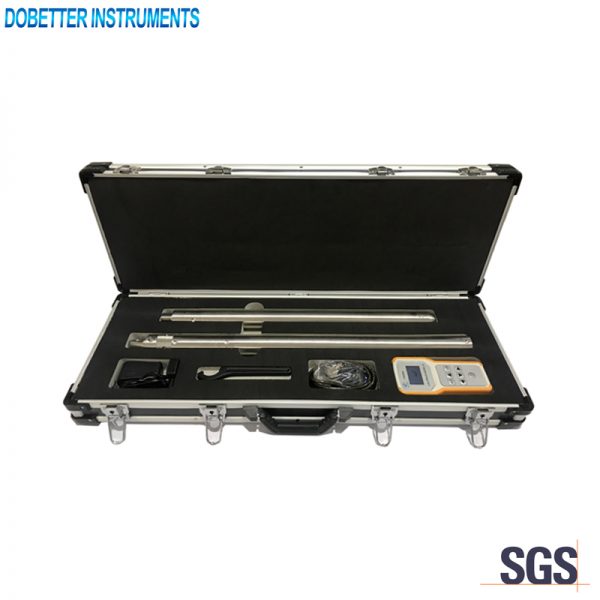

This instrument is a low-cost wireless magnetic inclinometer. It is operated by a portable controller and survey at each station by pre-set time interval. 99 groups of data can be saved. An USB port is set on the portable controller for easy communication with PC. The data and the drawing curve can be transfered.


1.Inclination Range 0° – 80°(Resolution 0.1°) Accuracy ±0.5° (0° – 50°)
±1.0° (50° – 80°)
2.Azimuth Range 0° – 360°(Resolution 1°) Accuracy ±4°(@Inclination>4°)
3.Pressure 25MPa (about 2500m)
4.Dimensions Ø40mm×1200mm Net weight about 6Kg
5.Temperature -10°C – 60°C
6.Power (Probe) 7.4V Rechargeable Battery Endurance 20 hours
7.Power (Controller) 4 pcs of AAA size batteries
8.Depth 2500m
9.Storage 99 groups of Inclination and Azimuth
