Description

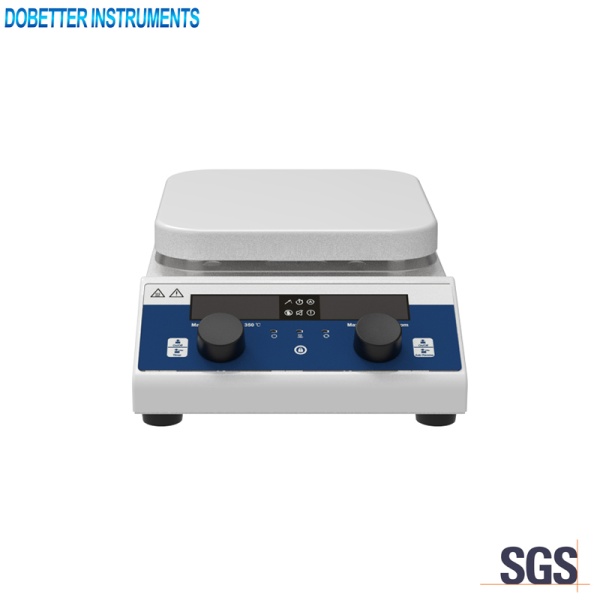

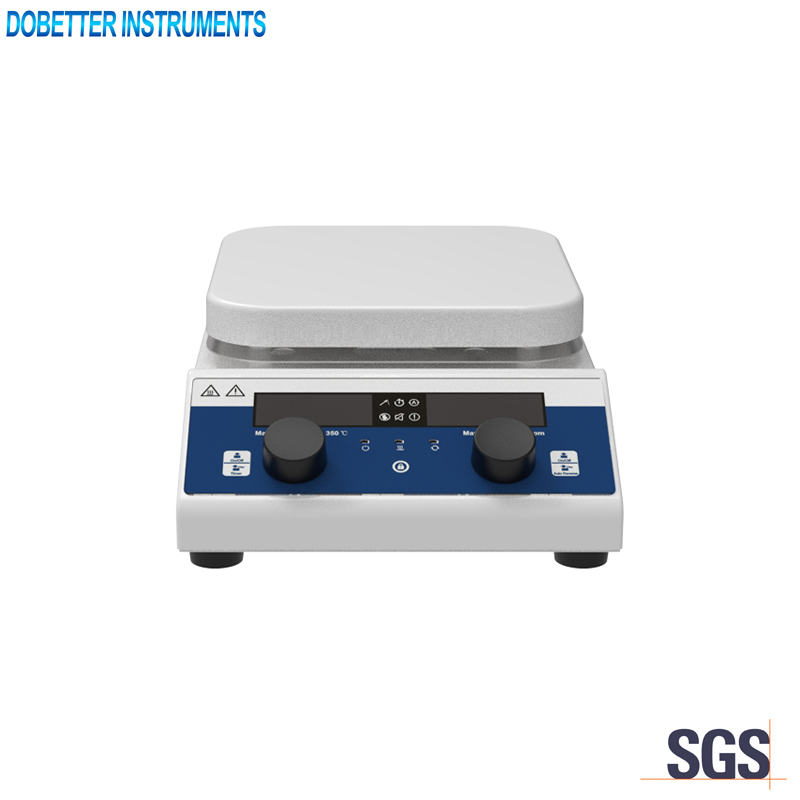

HS series heating magnetic stirrers are laboratory instruments used for liquid mixing, mainly for stirring or simultaneously heating and stirring liquids or solid-liquid mixtures with low viscosity.
Main technical specifications
1. Dimension of the working plate：180×180mm
2. Material of the working plate：Aluminium alloy with nano ceramic coating.
3. Motor power：20w
4. Heating power：800W
5. Stirring point：1 point
6. Stirring range：100~2000rpm
7. Maximum stirring capacity(H2O)：20L
8. Temperature range and accuracy：Rt＋5 to 350℃,±1℃
9. External temperature sensor： Pt1000
10. Timer：1m~99h59m
11. Ambient temperature：5℃~40℃
12. Power supply： AC220±5%, 50hz
Main technical features
1. A brushless DC motor is equipped. No need of maintenance and no spark.
2. Temperature alarming system is set to protect the user’s safety.
3. The working plate adopts aluminium alloy with ceramic coating. Good heating uniformity and anti-corrosion.
4. LED screen shows temperature and stirring rate. Easy to control the test.
