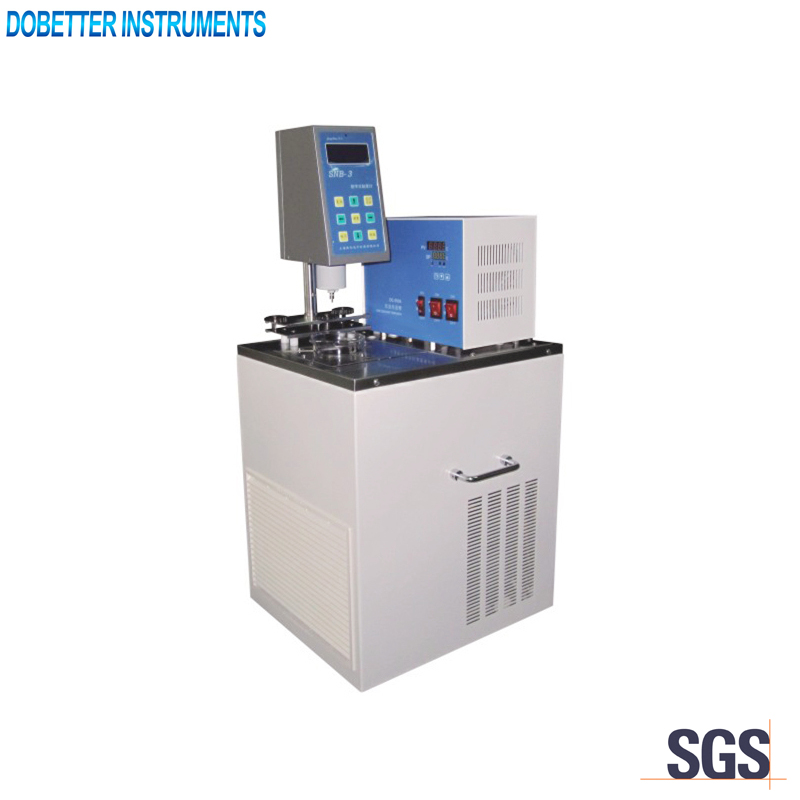

DC-0506 Thermostat

  • Description
  • Specifications&Features
  • Inquiry

DC-0506 thermostat is specially designed for our company’s viscometers. Suitable to provide different test temperatures for samples. Microcomputer precisely controls the thermostatic system . International famous brand of Pt100 temperature sensor is equipped. Good quality stainless steel material is used for table-board, inner slot and tank body. The durability is good.

Main technical specifications and features

1.Temperature control range: -5~95℃
2.Temperature display resulotion: 0.1℃
3.Temperature control precision: ±0.05℃
4.Pump flow rate: 8L/min
5.Circulating mode: Inner or outer circulation, selectable
6.Volume: 6L
7.Dimension of slot: 150mm×150mm×150mm,1 hole(Φ74)
8.Overall dimension: 340mm×400mm×670mm
9.Power supply: AC220V,50Hz
