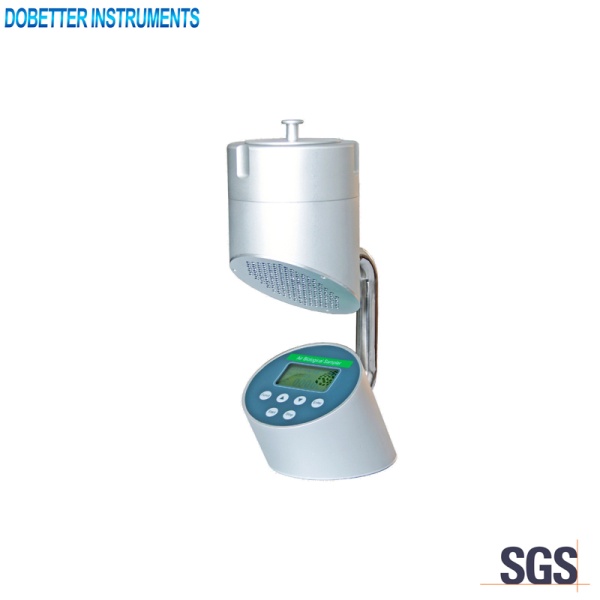

ABS-IV Portable Air Biological Sampler

Description

Application
ABS-IV Air Biological Sampler is a kind of high effective air sampler. It is designed according to the principle of multi jet holes particle impact and isokinetic sampling. And it gets the consistence of animalcule more accurately. When sampling, airborne particles will impact on agar surface of substrate utensil through tiny holes; after incubation of the agar plate, colonies can be counted and identified.

Main technical specifications
1. Power supply：AC(220±10%)V, 50Hz/60Hz
2. Flow rate：100L/min
3. Type of sampling：Isokinetic sampling
4. Sampling quantity：0.01 to 6.0 m³
5. Flow velocity of sampling holes：0.4 m/s
7. Rechargeable battery：DC7.4 V/ 6800 m Ah
8. Operating time of battery：6 to 8 hr
9. Controller：PC board control
10.Material：Aviation aluminum

Main technical features
1. 2.5 inch colored LCD display. All parameters are showed clearly on the screen. Easy to use.
2. Built-in pumping measurement. Rapid response. Over 10 meters of sampling distance.
3. Waterproof, dustproof, explosion-proof, shock-proof, intrinsic safety circuit design, anti-static, anti-electromagnetic interference. IP66 protection level, which can prevent rain and water splash.
4. Built-in water vapor and dust filter to prevent damage to sensors and instruments due to water vapor and dust, can be used in high humidity and high dust environment.
5. The data recovery function can make the data selectively recovered or fully recovered.
6. Automatic tracking zero, no zero drift influence after long-term use.
