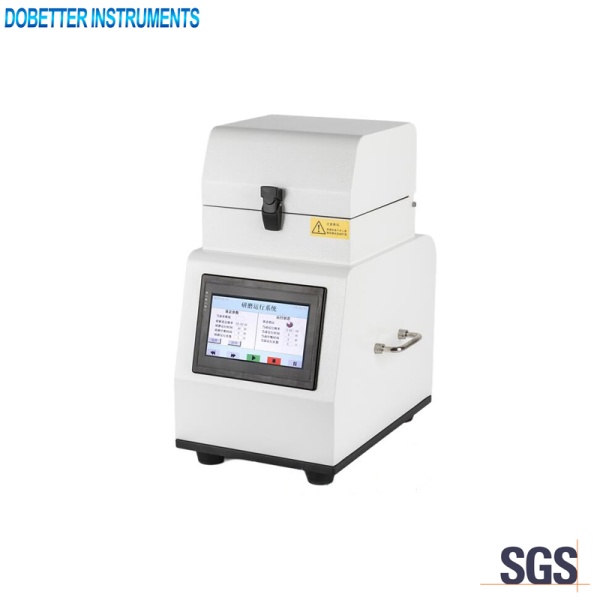

SDB-YM24 Geno Grinder

Description

Application
The integrated vertical up and down vibration mode is adopted, and the high-frequency reciprocating vibration, impact and shear of grinding beads (zirconia, steel balls, glass beads, ceramic beads) can achieve the working purpose quickly. It makes the grinding samples have the characteristics of more sufficient, more uniform, better sample repeatability and no cross-contamination between samples.

Main technical specifications
1.Processing capacity：24×(0.2-0.5ML) / 24×2ML / 6×(7-15)ML / 2×25ML / 2×50ML
2.Frequency range：0 to 70 Hz/Sec
3.Working time：0s to 99m59s, settable
4.Feed size：According to tube size
5.Final fineness：~ 5μm
6.Grinding beads diameter：0.1mm to 30mm
7.Grinding beads material：Alloy steel, chrome steel, zirconia,tungsten carbide, quartz sand
8.Automatic center positioning unit：Yes
9.Grinding method：Wet grinding, dry grinding, cold grinding(no refrigeration function)
10.Noise level：<55db
11.Acceleration time：With 2 Sec
12.Deceleration time：With 2 Sec
13.Tube holder materials：PTFE / Alloy Steel
14.Power supply：AC220V, 50Hz
15.Dimension&N.W.： 280mmx400mmx530mm, 23kg

Main technical features
1.Colored touch LCD. Adjustable working parameters. Easy to use.
2.It is applied to various samples. The working efficiency is high.
3.The sample tubes are completely closed during the crushing process. It avoids the cross-contamination between samples .
4.Maintenance free, low noise. No interference to other instruments.
5.When low temperature grinding environment is required, the adapter with the sample can be immersed in liquid nitrogen to cool for 1-2 minutes, and then moved to the host for quick fixing to start grinding, without the need for re-freezing treatment. It saves liquid nitrogen.
6.If the same working procedure is set to the same samples, the same grinding effect will be obtained. The working time is short, the sample temperature will not rise.
