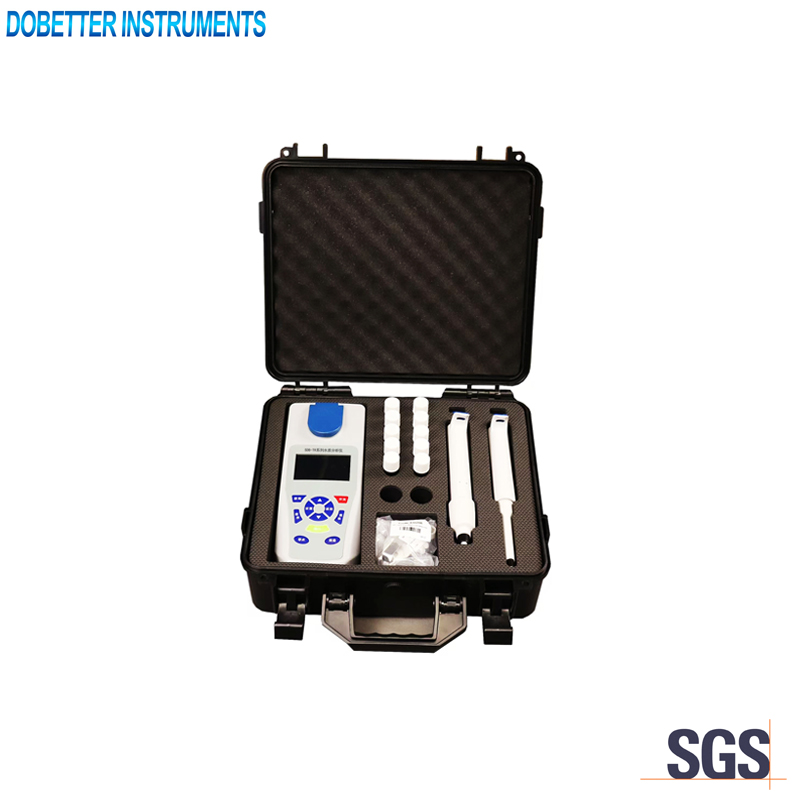

SDB-TR102H Portable Cyanide Analyzer

Description

SDB-TR102H Portable Cyanide Analyzer is developed and designed based on the authoritative certification method – HJ484-2009 “Method 3 isonicotinic-barbiturate spectrophotometry” standard. The instrument adopts imported cold light source and narrow band interference technology to detect the absorbance of the sample under a specific light source wavelength by spectrophotometry, and then automatically processes the data by microcomputer to directly display the sample‘s cyanide concentration value, expressed in mg/L.

Main technical specifications
1. Measuring range：0 – 1mg/L(segmented)
2. LOD：0.004mg/L
3. Digestion environment：No need of digestion
4. Measuring duration：15 – 30min
5. Measuring bias：≤±5％
6. Repeatability：≤±5％
7. Optical stability：≤±0.001A/20min(100000h lifetime)
8. Colorimetric mode：Digestion – Color comparison tube
9. Batch processing：Unlimited
10. Data storage：4000pcs of records, 96pcs of curves(It supports customized calibration curve)
11. Data output：USB, LAN; Bluetooth(optional)
12. External printer：Portable(optional)
13. Power：5V rechargeable lithium battery, 0.3W
14. Dimensions and net weight(Main unit)：240mm×95mm×80mm, 0.5Kg
15. Working condition: 15 to 40℃, RH≤85%

Main technical features
1. Large LCD display, intelligent operation procedures, direct data reading, easy to operate and time-saving.
2. The minimum display value is 0.001mg/L. The measuring sensitivity is high.
3. Imported cold light source with excellent optical performance. No need to preheat.The lifetime is up to 100,000 hour.
4. Standard or continuous measuring modes are alternative. The standard working procedures are built in. No need to do calibration and adjustment
5. Built-in system program and user program can be selected. Users can add frequent analyzing items to the user program which is easy to find.
6. Users can also develop their own user procedures and reagents to adapt to different water conditions on different occasions.
7. Up to 4000pcs of data can be stored in the instrument. The data can be outputted by USB, LAN or Bluetooth(optional).
8. The analyzer comes with power failure protection function, which can prevent data loss and facilitate the query of historical data.
9. The non-toxic reagent which provided can reduce the operational complexity and ensure the safety of personnel.
10. The instrument is compact in design, container-type configuration, light in weight and easy to carry.
