SDB-Sampleprep12 System

Description

Application
Application:
Prepare all kinds of aseptic medium in the laboratory and do subpackage aseptically.

System configuration:

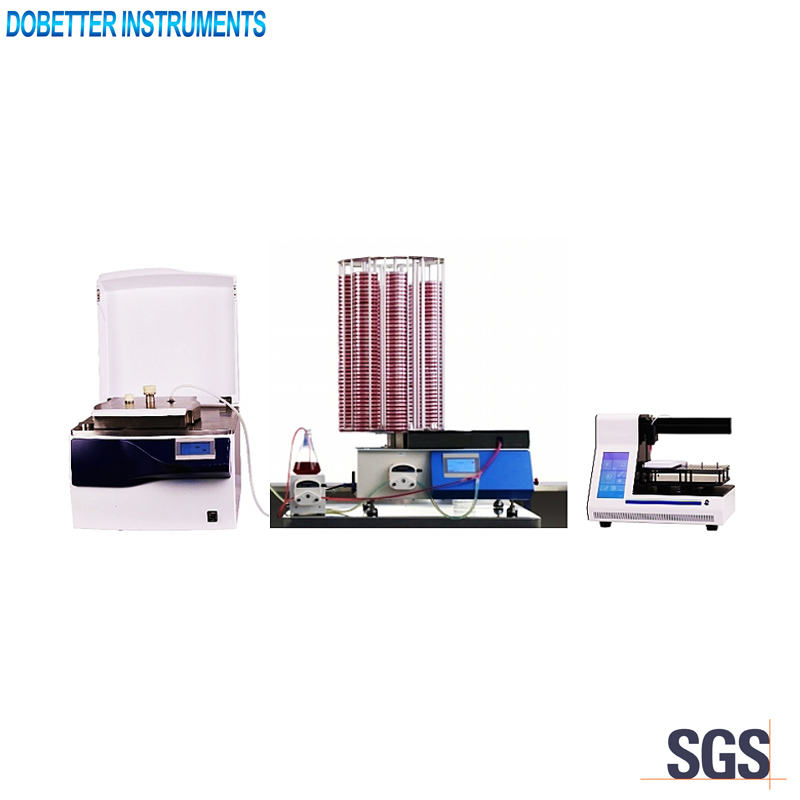

SDB-Sampleprep 12 Media Preparator + SDB-Samplefill 400 Filler + SDB-Tubefill 100 Filler

Main technical specifications
1.Volume：12L. Chamber shell: 18L
2.Chamber size：φ300mm×h260mm
3.Bucket size: φ260mm×h220mm
4.Sterilization temperature: 70-130℃, design temperature 147℃.
5.Packaging temperature: 25-80 ℃
6.Water bath temperature: 30-80℃
7.Temperature accuracy: 0.1℃
8.Temperature deviation: 0.5℃
9.Maximum working pressure: 2.5bar
10.Design pressure: 4bar
11.Chamber sterilization water: Deionized pure water, can automatically enter water (pressure ≥1bar), high and low water level alarm.
12.Cooling water interface: 2 minutes inner wire, diameter 12 pagoda connector.
13.Circulating water: Pressure is not less than 1bar tap water.
14.Drainage interface: 2 points inner wire, diameter 12 pagoda connector.
15.Time setting accuracy: 1 minute.
16.Sterilization pot material: S31603.
17.Subpackaging port: Three, can adapt to a variety of sub-packaging requirements; Feeding port: one, which can be used for material aseptic addition.
18.Separate hose: Inner diameter 6mm, thickness 2mm
19.Media adding port: Diameter 32mm
20.Stirring: Strong magnetic stirring. High speed 240rpm, low speed 120rpm, stepless adjustable.
21.The use of supplementary pressure water cooling system, can maintain rapid cooling chamber pressure.
22.Safety measures: Unique cover lock design, dual control of temperature and pressure, temperature greater than 80℃, pressure greater than 50mbar, the outer cover can not be opened, automatic locking, temperature greater than 50℃, pressure greater than 50 Mbar, the upper cover can not be opened, automatic locking to ensure that the cover will not be accidentally opened during operation, overtemperature protection 130℃, the temperature exceeds the set temperature 2.5℃ automatic warning. Overtemperature automatic power off, safety valve opening pressure: 1.7bar, built-in safety valve will not hurt the operator.
23.A flexible PT-100 temperature probe is used in the medium preparation chamber and placed at any position in the chamber.
24.High precision peristaltic pump, microflow control, quantitative accuracy, fast distribution, standard distribution hose: 25# or 17#, flow rate: 0.2 – 1120ml/min (25#), 0.3 – 1780ml/min (17#).
25.Subpackaging accuracy: about 1% (20ml), with a system calibration procedure, calibration operation is simple, to ensure accurate subpackage.
26.Double pump system, can prepare blood culture dishes.
27.Standard packaging capacity: 800 / h (double pump head, packaging volume 20ml, petri dish diameter: 90mm).
28.Petri dish rack: standard with 40 / grid, 9 grid, a maximum of 280 petri dishes can be placed at a time (diameter 90mm), optionally 60mm diameter Petri dish rack.
29.Sorting tray: standard with 6 cells (petri dish diameter 90mm), optional 60mm petri dish rack.
30.Optional printing module, the petri dish printing production date, expiration date, batch number and other information.
31.Equipped with SDB-Tubefill 100 separation system, can be divided into all porous plates, most of the centrifugal tubes, test tubes, frozen storage tubes and some irregular containers. Liquid separation range: 5ul-10ml, resolution: 1μl, working platform: a mobile platform.
32.Built-in UV lamp (254nm), independent disinfection of the packaging area, low pollution risk, UV lamp power: 11w, available for 13000 hours, then automatically remind to replace.
33.Large size touch screen, easy to operate, set parameters simple and intuitive.
34.It can disassemble the petri dish and turntable for cleaning and disinfection.
35.Petri dish bracket arc spring plate, making loading and unloading petri dishes easier and faster.
36.Equipment failure alarm function.

Working condition
1. Power supply: AC220V±10%, 50/60Hz; Max. Current: 20A
2. Ambient temp.: 25℃, RH≤90%
