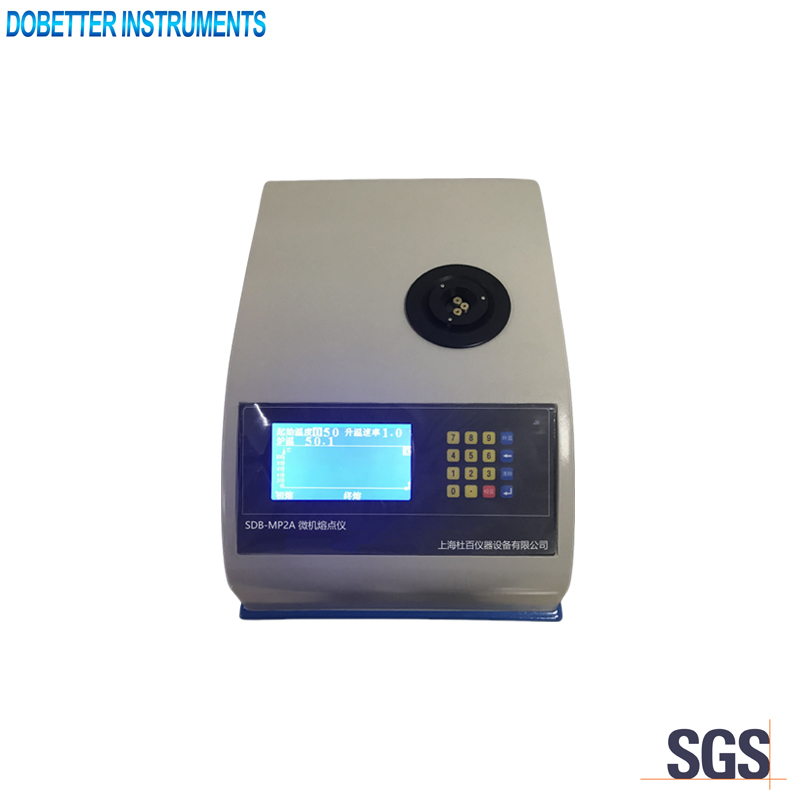

SDB-MP2A Melting Point Tester

Description

Application
SDB-MP series melting point testers adopts microcomputer control technology and photoelectric measurement technology. No need of manual intervention. It is a kind of high intelligent tester for analyzing the melting point of kinds of materials. It can be widely used in pharmaceutical, chemical, dyes, spices, rubber and other industries.

Main technical specifications
1. Power supply：AC220V, 50Hz / 120W
2. Measuring range：Rt. – 320℃
3. Resolution：0.1℃
4. Accuracy：±0.5℃(≤200℃) , ±0.8℃(＞200℃)
5. Repeatibility：0.3℃(Heating rate：1.0℃/min)
6. Linear heating rate：0.2℃, 0.5℃, 1.0℃, 1.5℃, 2.0℃, 3.0℃, 4.0℃, 5.0℃/min, 8 grades
7. Number of samples：3
8. Overall dimensions(mm)：400×280×230
9. Gross weight：9.8Kg

Main technical features
1. Photoelectric technology is used to do measurement. No need of manual intervention.
2. LCD display. Keyboard input. The melting curve is displayed on the screen directly. It can calculate the melting point result automatically.
3. Three samples can be tested at a time. The working efficiency is high.
4. 50Mb data storage space is equipped.
