Application

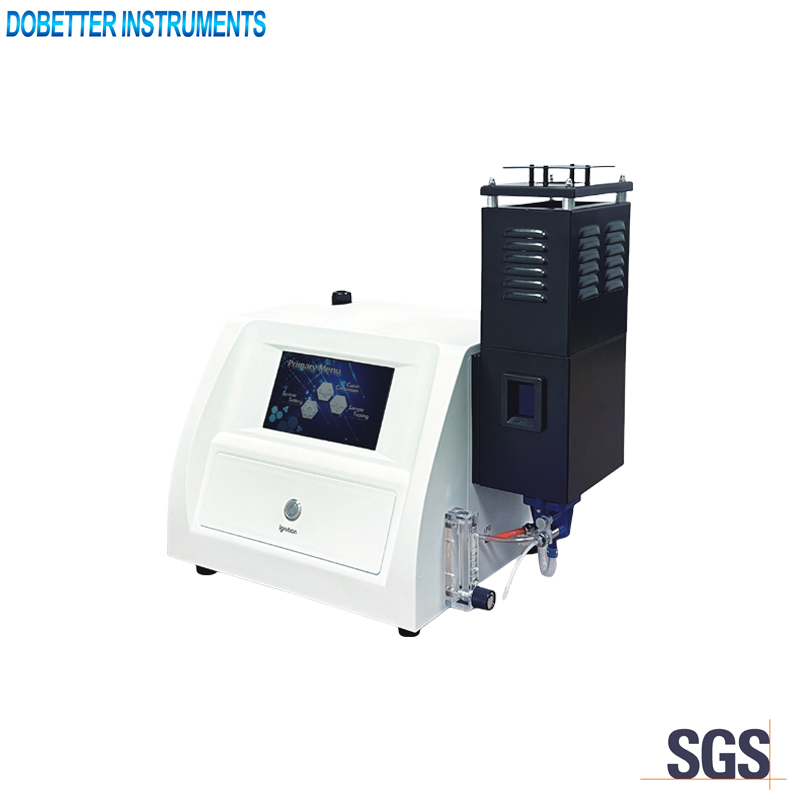

SDB-FP6431 Flame Photometer is a newly designed instrument. It has the advantages of small size, convenient operation, stability and reliability.
The host uses a 7-inch color capacitive touch LCD screen,It can store up to 200pcs of test data of the standard curve with a set of 10 points.The FP series flame photometer uses liquefied gas as fuel gas.
Main technical specifications
1.Operation mode: 7- inch color touch- screen
2.Display value: Concentration value
3.Data range: 0.000～999.9
4.Analysis elements: K, Na, Ca
5.Channel Qty: 3
6.Range ppm: K:0-100,NA:0-160,CA:0-1000
7.LOD ppm: K:0.01,Na:0.01,Ca:2
8.Linear error: K:0.195, Na:0.69, Ca:3
9.Response time: <8s
10.Sample uptake: <6ml/min
11.Stability: <3% drift over15s when continuously aspirating.
12.Reproducibility: <3% coefficient of variation for 7 consecutive samples
13.Interface: USB
14.Fuel: LPG
15.Power supply: AC 220V±22V,50Hz±1Hz, 250 W
Main technical features
1.7- inch color touch- screen. Direct concentration display. Automatic calculation of correlation coefficient. Concentration units selectable. Easy to use.
2.Pre-selection of flame sizes.
3.Flameout protection device.
4.Measuring range changing.
5.Multilingual user interface.
6.Air compressor provided.
