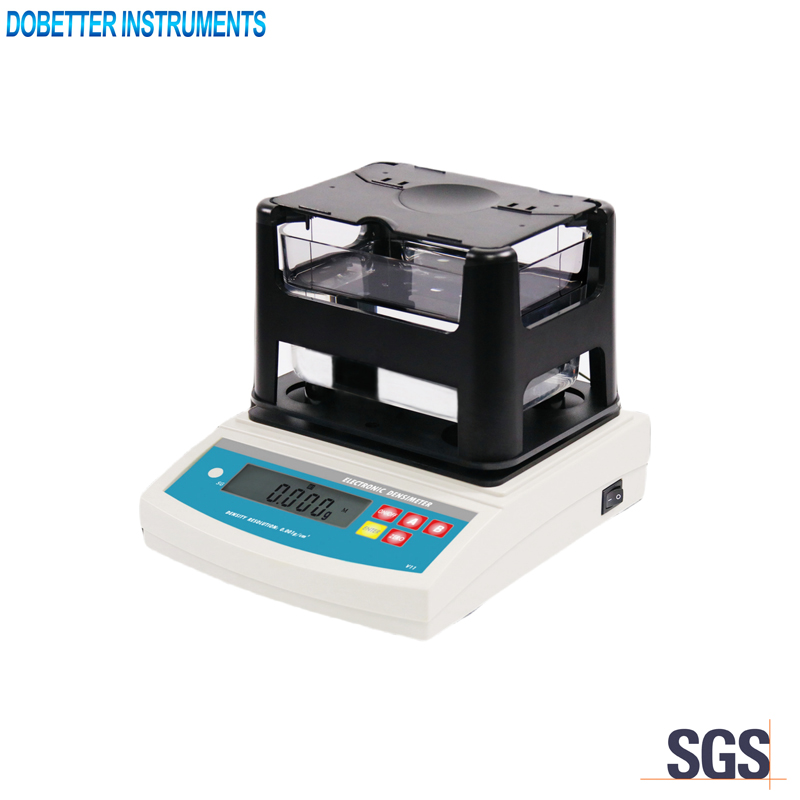

SDB-DH600 Electronic Density Meter

Description

Applications
SDB-DH Series Electronic Density Meters are mainly for the density measurement of polymer materials. They are widely used in the measurement of plastics, rubber, wire and cable, composite materials, packaging materials, shoes, pipes, electrical appliances, sports equipment, tires, glass, rocks, ores, jewelry, crops, metal materials, locomotive parts and other substances.

Main technical specifications
1.Power supply: AC100V to 240V, 50Hz/60Hz
2.Measuring range: 0.001 to 99.999g/cm3
3.Maximum weight: 600g
4.Minimum weight: 0.005g
5.Resolution: 0.001g/cm3
6.Measuring time: 10 Sec
7.Display unit: Density/Volume/Percentage
8.Material of the measuring frame: ABS integrated injection molding, flip-free
9.Water tank: Integrated injection molding, transparent. 15.3cmx10.7cmx9.3cm
10.Output port: RS-232
11.Dimension&N.W.: 42.5cmx17.5cmx32.5mm, 4.5kg

Main technical features
1.The sensor imported from Germany is used for better measurement repeatability.
2.The flip-free measuring frame makes the operation easier.
3.The waterproof shell film can protect the instrument inside from water seepage.
4.PC-material water tank. Wear-resistant and anti-corrosive.
5.0.5cm stainless steel hanging wire, no bending, no deformation, and vertical to avoid touching the water tank.
6.Water is the medium, or other liquid medium can also be used. It also has the function of water temperature compensation.
