Applications

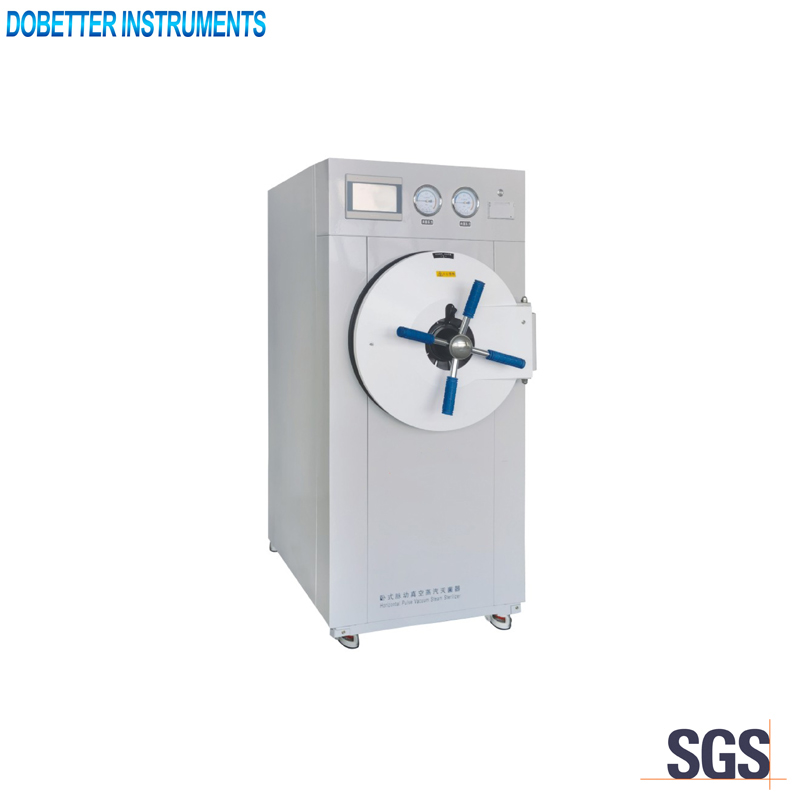

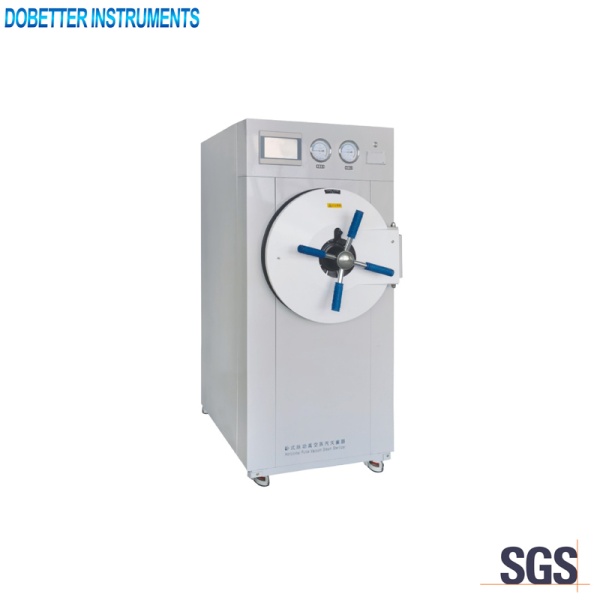

This autoclave works on pressurized saturated steam for sterilization of items, eliminating the impact of cold air on the temperature by means of pulsating vacuum exhaust, and eventually drying the items by vacuum dehumidification realized in a jacket. It utilizes the physical property that pressurized saturated steam can release a large amount of latent heat when condensing, rendering the items to be sterilized under high temperature and humidity. The purpose of sterilization is attained after a period during which the bio-structure of all the germs in the items are completely destroyed. It is mainly used in hospitals, chemical industry. food, scientific research, pharmaceutical and other units for disinfection and sterilization of surgical instruments, dressings, medicines, culture medium, food, etc.
Specifications&Features
Main technical specifications
1. Capacity：300L
2. Max. Working Pressure: 0.25 MPa
3. Design Pressure: 0.3Mpa
4. Max. Working Temperature: 138 °C
5. Design Temp.: 150 °C
6. Sterilization Time: 0 to 99 minutes
7. Drying Time: 0 to 99 minutes
8. Heat Distribution: ≤ ±2 °C
9. Control System: Microprocessor
10. Steam Generator: Built-In, Stainless Steel 304
11. Water Tank: Stainless Steel 304
12. Chamber Material: Stainless Steel 304
13. Door Type: Safety Interlock Door
14. Loading Tray: Removable Stainless Steel Sterilization Tray
15. Power supply: 380V three phase, 50Hz
16. Power Consumption: 13 kW
17. Chamber Dimensions: 300L / Ø600 × 1080 mm
18. Outer Dimensions: 1520 × 850 × 1850 mm
19. Packing Dimensions: 1680 × 1080 × 2100 mm
20. Net Weight: 528 kg
21. Gross Weight: 613 kg
Main technical features
1. Automatially controlled the sterilizing process, easy to operate.
2. The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well。
3. With three or more pulsating vacuums, it is suitable for all kinds of packaged, unpackaged, porous instruments with internal pipelining system.
4. The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
5. The sterilizer is equipped with a steam generator, with a set of mobile sterilization trays.
6. The inner chamber of the sterilizer is a circular double-layer design, which is composed of a sterilization chamber and a jacket, and capable of deep drying.
7. Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
8. Sealed doors: Doors are opened and closed manually, using the radiation rod.turntable type, equipped with secondary self-locking and interlocking safety devices, single door design (double-door design optional), with pressure safety interlocking device.
9. With printing function and the printer can record the whole process of sterilization.
10. With Bowie& Dick test function for steam penetration test. Automatic fault detection is also enabled, which is convenient for self-maintenance.
11. With over-temperature, over-pressure auto-protect.
12. The chamber of the sterilizer is made of stainless steel.
