Applications

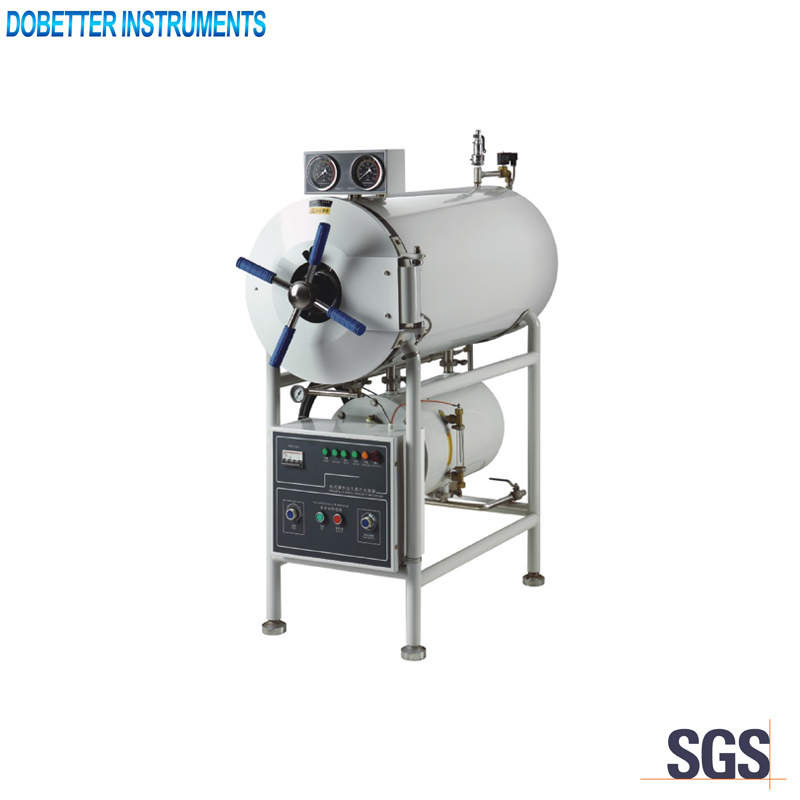

The horizontal autoclave, which adopte the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.
Specifications&Features
Main technical specifications
1. Capacity：280L
2. Max. Working Pressure: 0.25 MPa
3. Max. Working Temperature: 138 °C
4. Design Temp.: 150 °C
5. Sterilization Time: 0 to 60 minutes
6. Drying Time: 0 to 60 minutes
7. Heat Distribution: ≤ ±2 °C
8. Control System: Microprocessor
9. Status Display: Indicator Light
10. Steam Generator: Built-In, Stainless Steel 304
11. Water Tank: Stainless Steel 304
12. Chamber Material: Stainless Steel 304
13. Door Type: Safety Interlock Door
14. Loading Tray: Removable Stainless Steel Sterilization Tray
15. Power supply: 380V three phase, 50Hz
16. Power Consumption: 12 kW
17. Chamber Dimensions: 280L / Ø600 × 1000 mm
18. Outer Dimensions: 1400 × 770 × 1780 mm
19. Packing Dimensions: 1680 × 920 × 1950 mm
20. Net Weight: 391 kg
21. Gross Weight: 465 kg
Main technical features
1. Automatially controlled the sterilizing process, easy to operate.
2. With drying function, suitable for the medical dressing drying. and the steam would be exhausted the water tank.
3. With over-temperature, over-pressure auto-protect.
4. The door can not be open until the pressure in the chamber is reduced to 0,027MPa. And the unit can not be started on if the door doesn't close well.
5. The safety valve will be open automatically when the inner pressure over 0.24MPa
6. Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
7. The chamber of the sterilizer is made of stainless steel.
8. The cycle cannot be started if the door is not sealed. Once the cycle is started and running. the scaled door is locked and cannot be opened to ensure operational safety.
