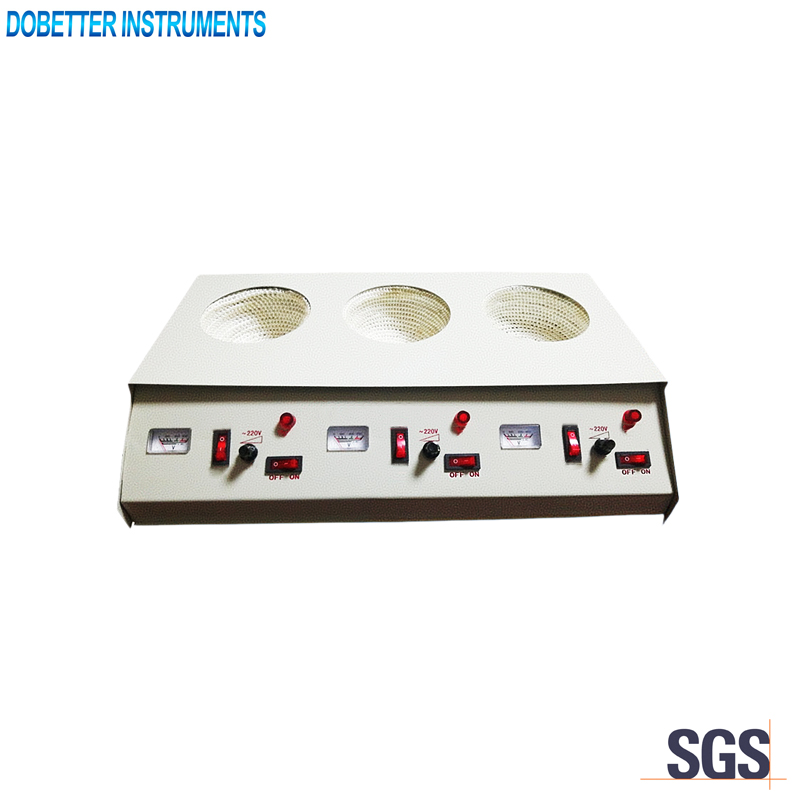

KDM-3-500 Multi-Position Heating Mantle

Description

Application
KDM series of multi-position heating mantles are suitable for petroleum, chemical industry, medicine and health, environmental protection, biochemistry, experimental analysis, education and scientific research units. They are the ideal equipment for liquid heating.

Main technical specifications
1. Power supply：AC220V, 50Hz
2. Heating power consumption：850W
3. Max. Working temperature：380℃
4. Temperature controller：Electronic knob regulation
5. Dimension of the heating element：φ115mm×60mm
6. Over dimension：450mm×290mm×100mm
7. Net weight：4.5Kg

Main technical features
1.The product uses high temperature alkali free glass fiber as the insulation material, the resistance wire of nickel chromium material is sealed in the insulation layer, textile into a hemispherical internal heat heater.
2.Reasonable shape, indicators light on during working. Stepless regulation for easy operation. Good experimental effect.
