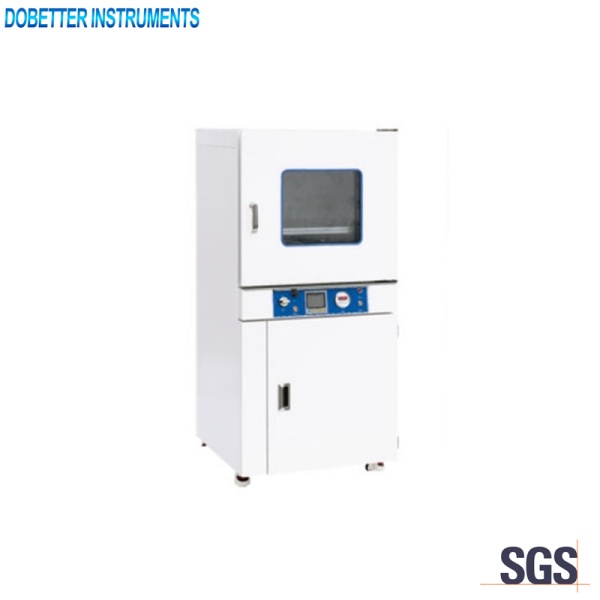

DZF-6030Z Vacuum Dry Oven

Main technical specifications
1. Power supply: AC220V±5%, 50Hz
2. Chamber capacity: 32L
3. Inner chamber: 320mm×320mm×320mm
4. Temperature range and resolution: Rt.+10 to 200℃, 0.1℃
5. Temperature stability: ±1℃
6. Vacuum degree: ＜133Pa,±3%
7. Shelves: 2pcs, stainless steel,ss304
8. Power consumption: 650W
9. Timing range: 1–9999 min
10.Ambient temperature: 5 to 40℃
11.RS-2 Vacuum pump(optional)
(1) Power supply: AC220V±5%, 50Hz
(2) Pumping rate: 5CFM
(3) Limited pressure: 5Pa
(4) Power: 250W
(5) Oil needed: 250ml
(6) Screw thread of gas inlet: 7-16/20,M12×1.25
(7) Dimension and weight: 320mm×128mm×260mm, 9Kg
(8) Main features: An oil and gas separator is equipped, eco-friendly. Integration design, aluminium alloy housing is used for the motor. Easy to maintain. The shock-proof rubber feet reduce the shock.

Main technical features
1. Microcomputer control and LCD display. Good temperature control performance.
2. Stainless steel working chamber and shelf. Good anti-corrosion, easy to clean and long lifetime.
3. Double-layer tempered glass door. Easy to observe the object in the chamber clearly.The door can be closed with adjustable tightness. The integral forming synthetic silicon door sealing ring ensures the high vacuum degree in the working chamber.
4. A digital pressure controller is equipped for precise vacuum degree control.
5. A storage cabinet is equipped. A vacuum pump is optional.
