Description

Standards

JTG E20-2011 / T 0722, ASTM D2172

Application

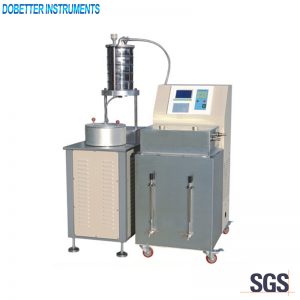

This instrument is used for the quantitative determination of asphalt binder content in asphalt mixtures and pavement samples.

Main technical specifications

1. The capacity of sample container: 1000g-3000g
2. Extracting accuracy: 0.1%
3. Extracting time: 20~40 min / time
4. Centrifugal speed: 6000rpm
5. Maximum power consumption: 4KW
6. Power supply: AC380V, 50Hz. Three-phase four-wire
7. Weight: 400g
8. Dimensions: 550 * 850 * 1700 (mm), 250kg–Main unit; 950 * 650 * 1250 (mm), 150kg–Control unit.
9. Ambient temperature: ≤35% RH:≤ 85%

Main technical features

1. Split design. Low vibration noise.
2. Large screen LCD.The recovery status is graphic display.
3. Improved vibration unit. The frequency is up to 3000Hz. High efficiency.
4. Transparent transmission pipe. Operator can observe the cleaning status of the asphalt mixtures without stopping the machine.
5. Automatic sieving, automatic recovery of trichloroethylene, automatic recovery of mineral powder.
