Description

Standards
GB/T 265,GB/T 11137,GB/T 1995

Application

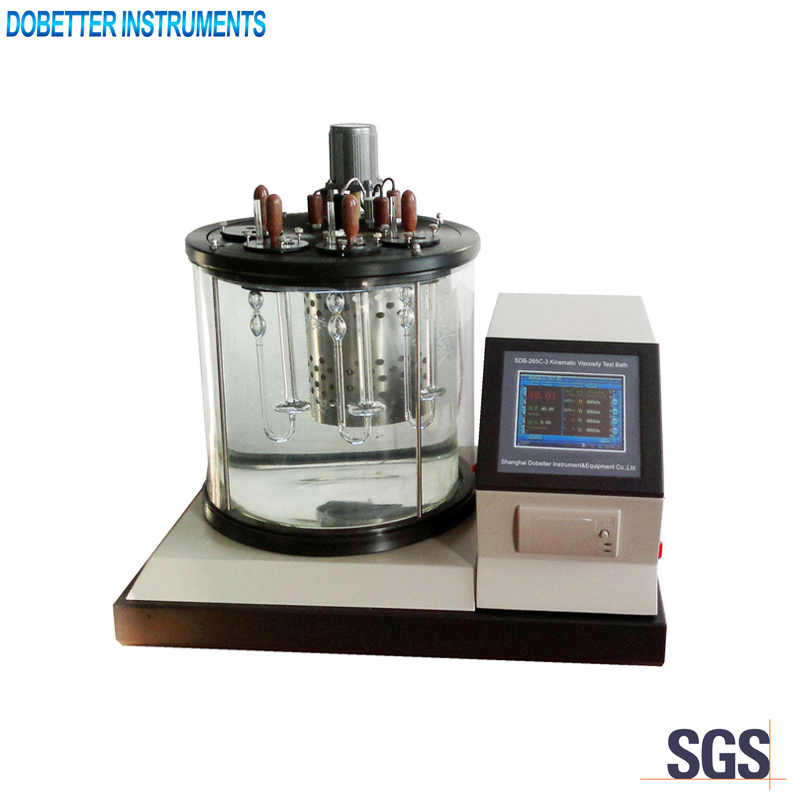

This instrument is used to determine the kinematic viscosity of liquid petroleum products (Newtonian flow behavior) and viscosity index of lubricating oils.

Main technical specifications

1. Capacity of bath: Ф240mm×280mm
2. Temperature range: Ambient to 100℃
3. Temperature resolution: 0.01℃
4. Temperature control precision: ±0.05℃
5. Timing precision: ±0.1s
6. Display: 5.6 inch colored LCD
7. Sample amount: 4 samples
8. Power supply: AC(220±10%)V, 50Hz±1Hz
9. Maximum power consumption: 750W
10.Working environment: Ambient temp.(15~35)℃ ,RH <85%
11.Overall dimension and N.W:535mm×440mm×550mm, 23kg

Main technical features

1. Multifunctional. It can determine the kinematic viscosity of liquid petroleum products (Newtonian liquids) and the kinematic viscosity of dark petroleum products. It can also be used to determine the viscosity index of lubricating oils.
2. Micro-processor control and colored LCD technology. Chinese-English bilingual menu. GUI touch screen. Easy to operate.
3. Advanced digital control and display. Automatic kinematic viscosity determination
4. It can test 2 samples at a time. The parameters such as temperature, time, coefficient of capillary viscometer tube can be inputted in or displayed on the screen.
5. New-type temperature sensor. The temperature resolution is 0.01℃. Temperature control precision is ±0.05℃.
6. It can save 99pcs of coefficients of capillary viscometers.
