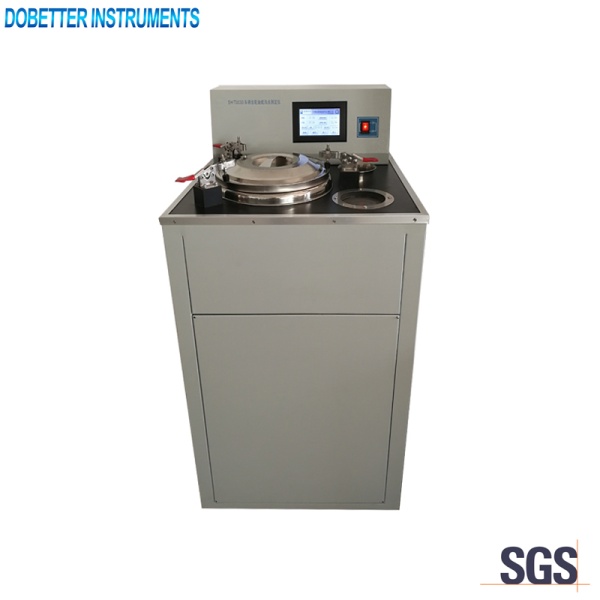

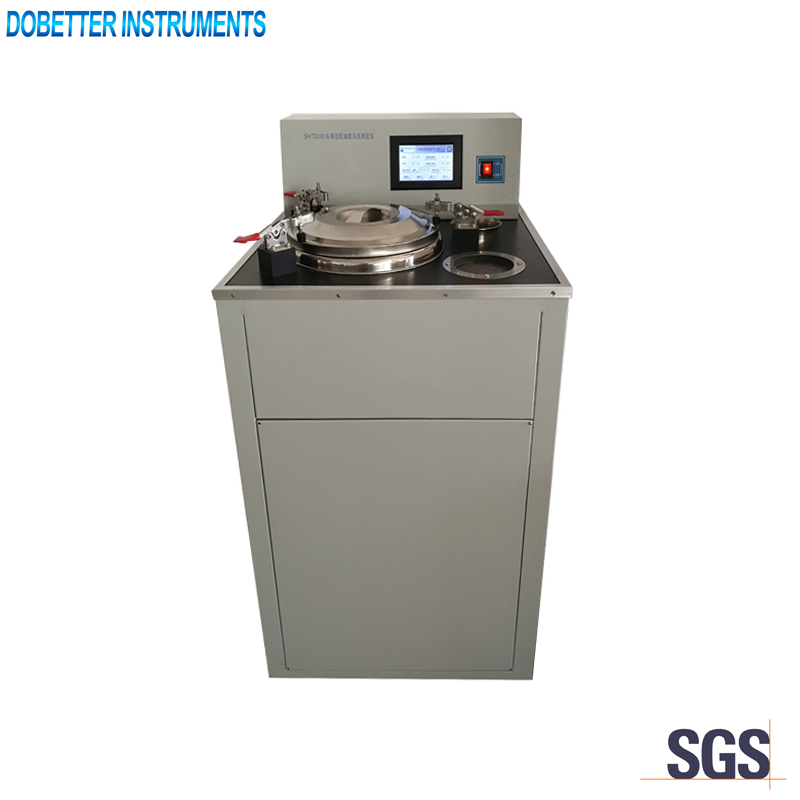

SDB-0030 Vehicle Gear Oil Channel Point Tester

Description

Standards
SH/T 0030, FTMS 791B 3456.1 MOD

Application
This instrument is used to determine the channel point of vehicle gear oils.

Main technical specifications
1. Power supply：AC 220V±5%, 50Hz
2. Temperature control of the metal-block bath：-60℃～50℃, ±0.5℃
3. Heating power：800W
4. Cooling power：600W
5. Overall dimension：750×550×960mm

Main technical features
1.Advanced imported built-in temperature control system is adopted in this instrument. Large LCD screen displays and operation.
2.The cooling system adopt cascade unit. The parts are all imported(German compressor, Italian cooling agent and Canadian fan condenser). The cooling speed is good and the noise is low.
3.The cooling and heating are both in one metal-block bath. The temperature control is controlled precisely. And no need to move the sample.
4.Digital displays the timing and alarm. It will prompt the end of the test.
