Description

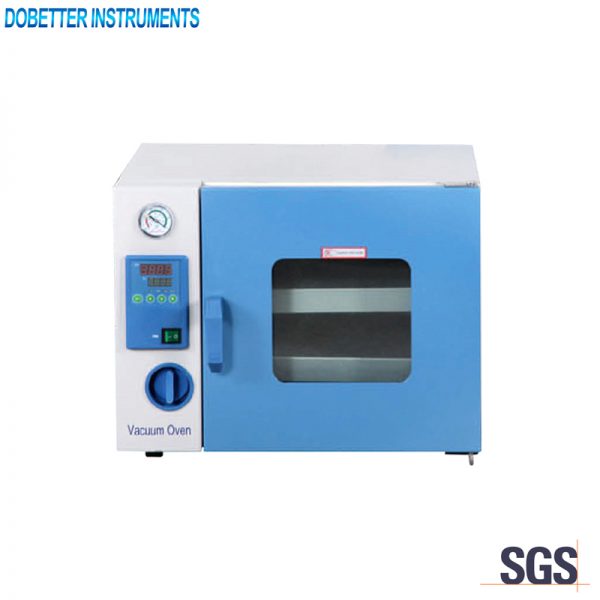

DZF series vacuum ovens are widely used in biochemistry, chemical pharmacy, medical and health, agricultural scientific research, environmental protection and other research and application fields, for powder drying, baking and all kinds of glass container disinfection and sterilization.It is especially suitable for fast and efficient drying of dry materials with heat sensitivity, easy decomposition, easy oxidation and complex components.

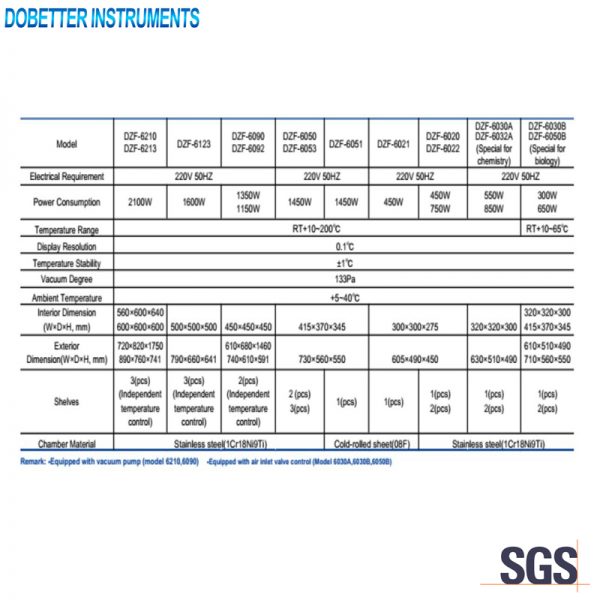

Main technical specifications
1. Power supply：AC220V±5%，50Hz
2. Temperature range and precision：Ambient to 200℃,±0.1℃
3. Vacuum degree：＜133Pa,±3%
4. Power consumption：550W
5. Working chamber dimension：320×320×300mm
6. Overall dimension：630×510×490mm
7. Net weight：37kg
Main technical features
1. Microcomputer control and digital temperature display. Good temperature control performance.
2. Stainless steel working chamber. Good anti-corrosion, easy to clean and long lifetime.
3. Double-layer tempered bullet-proof glass door. Easy to observe the object in the chamber clearly.
4. The door can be closed with adjustable tightness. The integral forming synthetic silicon door sealing ring ensures the high vacuum degree in the working chamber.
5. Storage, heating, testing and drying can be carried out in an environment without oxygen or filled with inert gases, without causing oxidation.
